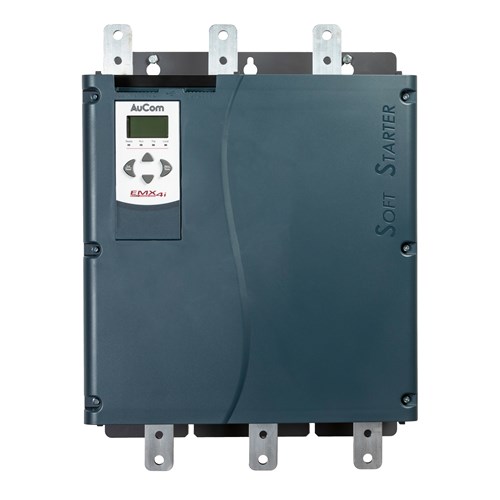

AuCom EMX4i1250BV5C1H SOFT STARTER EMX4i 1250A 200-525VAC, CONTROL 110/240VAC

The EMX4i is an advanced smart soft starter designed for in-line installation. It features an internal bypass and has a frame size of S3 with an IP00 rating. The current ratings vary depending on the load, with light, medium, heavy, and severe options available. The supply voltage range is 200-525V AC, while the control voltage is 110/240V AC. This soft starter offers a wide range of motor control features, including constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse), and inside delta (6 wire) control. In terms of motor protection, the EMX4i provides safeguards for motor thermistor, current imbalance, under/over current, phase sequence, phase loss, and power loss. It also includes emergency run mode and run simulation capabilities with real-time performance graphs. For simplified management, the EMX4i offers SCR fail power through operation and daily on/off scheduling. Additionally, it can support various expansion cards for advanced functionality such as an I/O smart card or communication expansion card with remote keypad connector. Alternatively, a dedicated keypad connector card can be used. To facilitate parameter upload and download, the EMX4i is equipped with a USB port and data logging capabilities.
