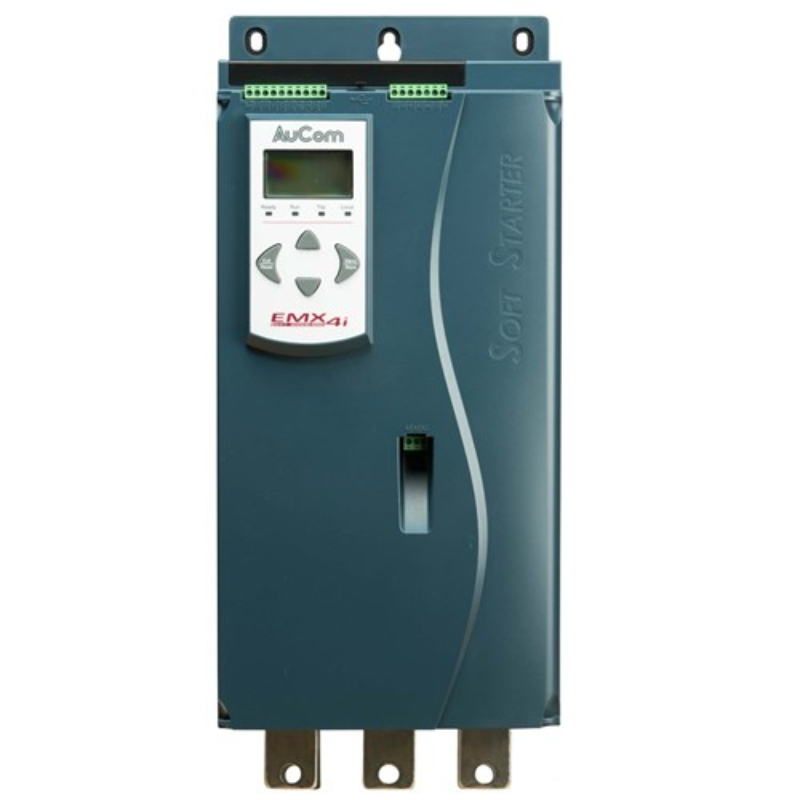

AuCom EMX4i0200BV5C1H SOFT STARTER EMX4i 200A 200-525VAC, CONTROL 110/240VAC

The EMX4i is an advanced smart soft starter designed for in-line installation. It features an internal bypass and has a frame size of S2 with an IP00 rating. The current ratings vary depending on the load, with light at 200A, medium at 170A, heavy at 138A, and severe at 108A. The supply voltage range for the EMX4i is between 200-525V AC, while the control voltage is either 110V or 240V AC. This smart soft starter offers a wide range of motor control features including constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse), and inside delta (6 wire) control. In terms of motor protection, the EMX4i provides protection against motor thermistor faults, current imbalance, under/over current conditions, phase sequence issues, phase loss events, and power loss situations. It also includes emergency run mode and run simulation capabilities with real-time performance graphs. For simplified management, the EMX4i offers SCR fail power through operation and daily on/off scheduling options. Additionally, it can support various expansion cards such as an I/O smart card or communication expansion card with a remote keypad connector. Alternatively, it can be used with a dedicated keypad connector card for advanced functionality. To facilitate parameter upload and download processes easily, the EMX4i comes equipped with a USB port and data logging capabilities.
