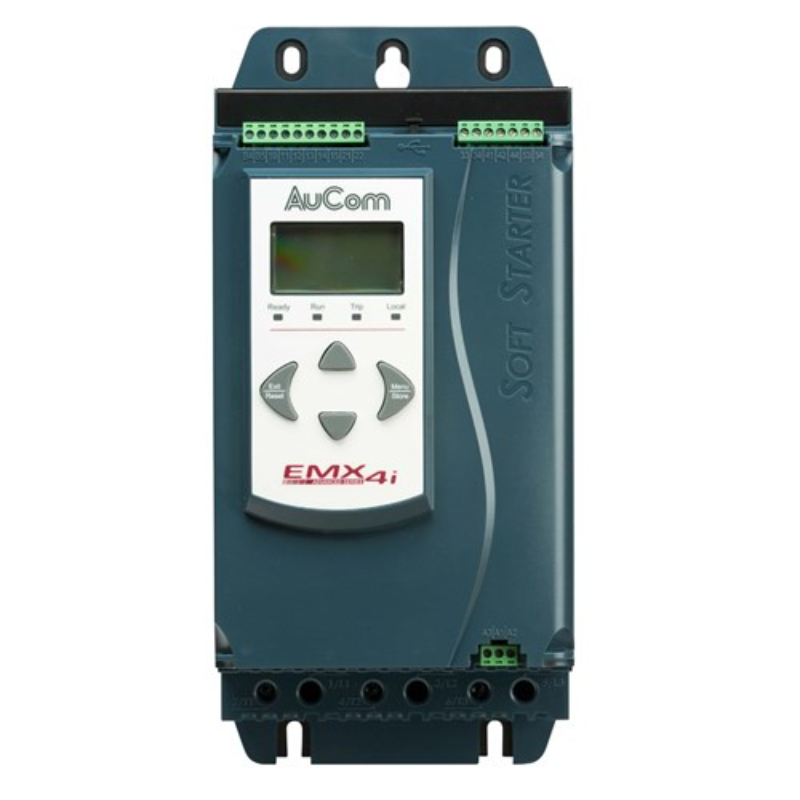

AuCom EMX4i0135BV5C2H SOFT STARTER EMX4i 135A 200-525VAC, CONTROL 24VAC/DC

The EMX4i is an advanced smart soft starter designed for in-line installation. It features an internal bypass and has a frame size of S1 with an IP20 rating. The current ratings vary depending on the load, with light at 135A, medium at 129A, heavy at 103A, and severe at 78A. The supply voltage range for the EMX4i is between 200-525V AC, while the control voltage is 24V AC/DC. This soft starter offers a wide range of motor control features, including constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse), and inside delta (6 wire) control. In terms of motor protection, the EMX4i provides safeguards for motor thermistor, current imbalance, under/over current, phase sequence, phase loss, and power loss. It also includes emergency run mode and run simulation with real-time performance graphs. For simplified management, the EMX4i offers SCR fail power through operation and daily on/off scheduling. Additionally, it can support an I/O smart card or communication expansion card with a remote keypad connector. Alternatively, it can be used with a dedicated keypad connector card for advanced functionality. To facilitate parameter upload and download, the EMX4i is equipped with a USB port and data logging capabilities.
