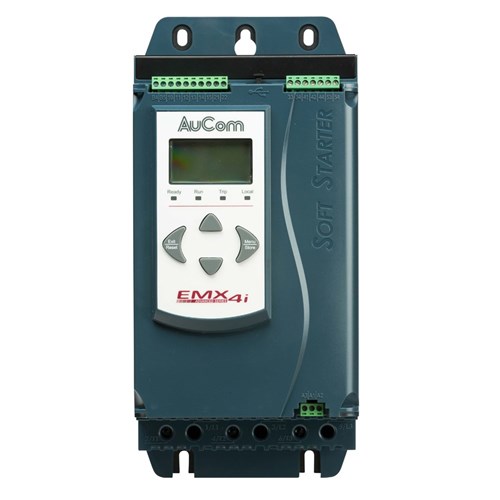

AuCom EMX4i0024BV5C2H SOFT STARTER EMX4i 24A 200-525VAC, CONTROL 24VAC/DC

The EMX4i is an advanced smart soft starter designed for in-line installation. It features an internal bypass and has a frame size of S1 with an IP20 rating. This soft starter has different current ratings depending on the load: 24A for light loads, 20A for medium loads, 16A for heavy loads, and 12A for severe loads. The supply voltage range is between 200V and 525V AC, while the control voltage is at 24V AC/DC. Motor control capabilities include constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse), and inside delta (6 wire) control. The EMX4i also provides motor protection against various issues such as motor thermistor faults, current imbalance, under/over current conditions, phase sequence errors, phase loss, and power loss. For simplified management, this soft starter offers SCR fail power through operation and daily on/off scheduling. It also includes emergency run mode and run simulation with real-time performance graphs. To enhance functionality further, the EMX4i can support an I/O smart card or a communication expansion card with a remote keypad connector. Alternatively, it can be used with a dedicated keypad connector card. Additionally, it has a USB port for easy parameter upload and download along with data logging capabilities.
