Product Code: E66S36T250

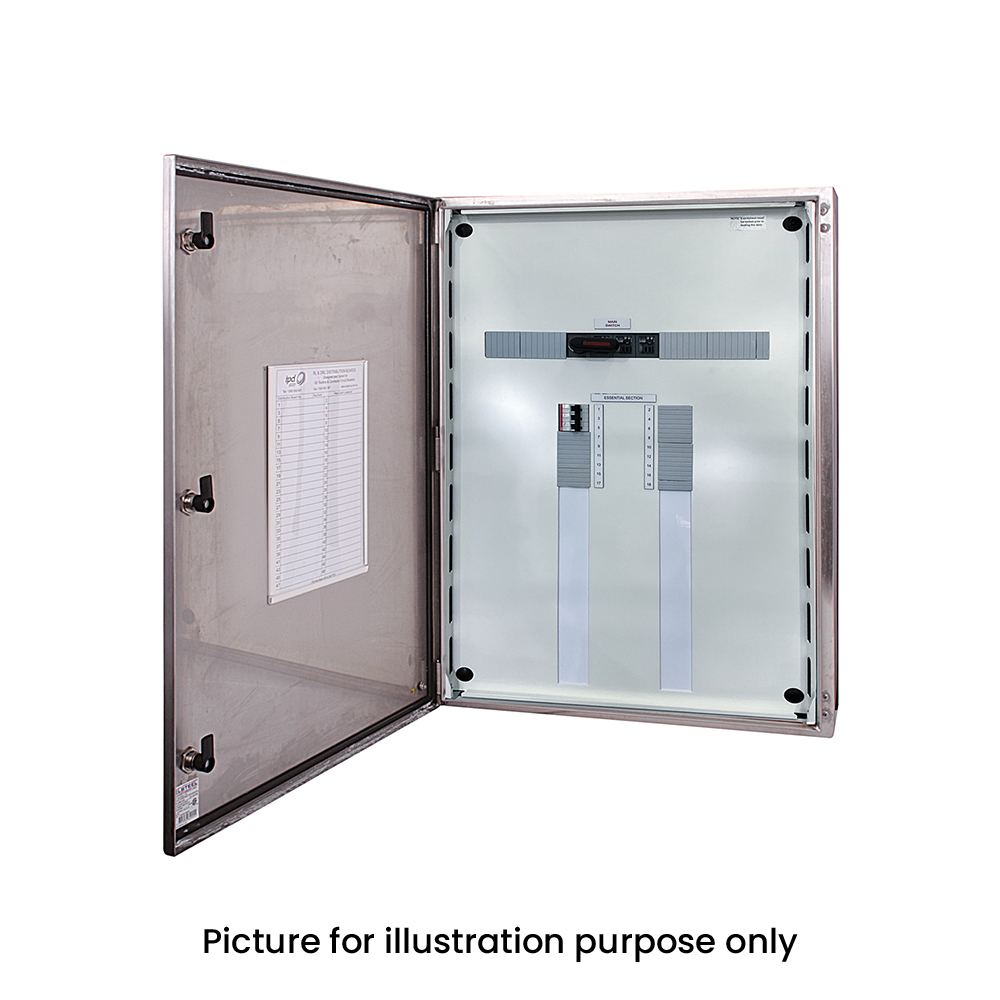

Evolution distribution boards are specifically designed for System pro M S200 range protection devices. These boards are constructed from 1.6mm Grade 316 Stainless Steel, which is unpainted. They have an IP66 rating, making them suitable for outdoor use in exposed and corrosive environments, as well as washdown situations. The enclosure of the distribution board includes an OT250 LBS, 36P encapsulated chassis, metal locks, and a hinged escutcheon. The dimensions of the board are 800H x 600W x 200Dmm.

Brand	IPD
Degree of Protection	IP66
Dimensions (mm)	800H x 600W x 200D
DIN Accessory Spaces	15
Material	Stainless Steel
No. of Locks	2
No. of Poles	36P
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD DB 36P IP66 SS + OT250 LBS E66S36T250

Product Code: E66S36T250

Technical Specifications
