Product Code: E65A60T250

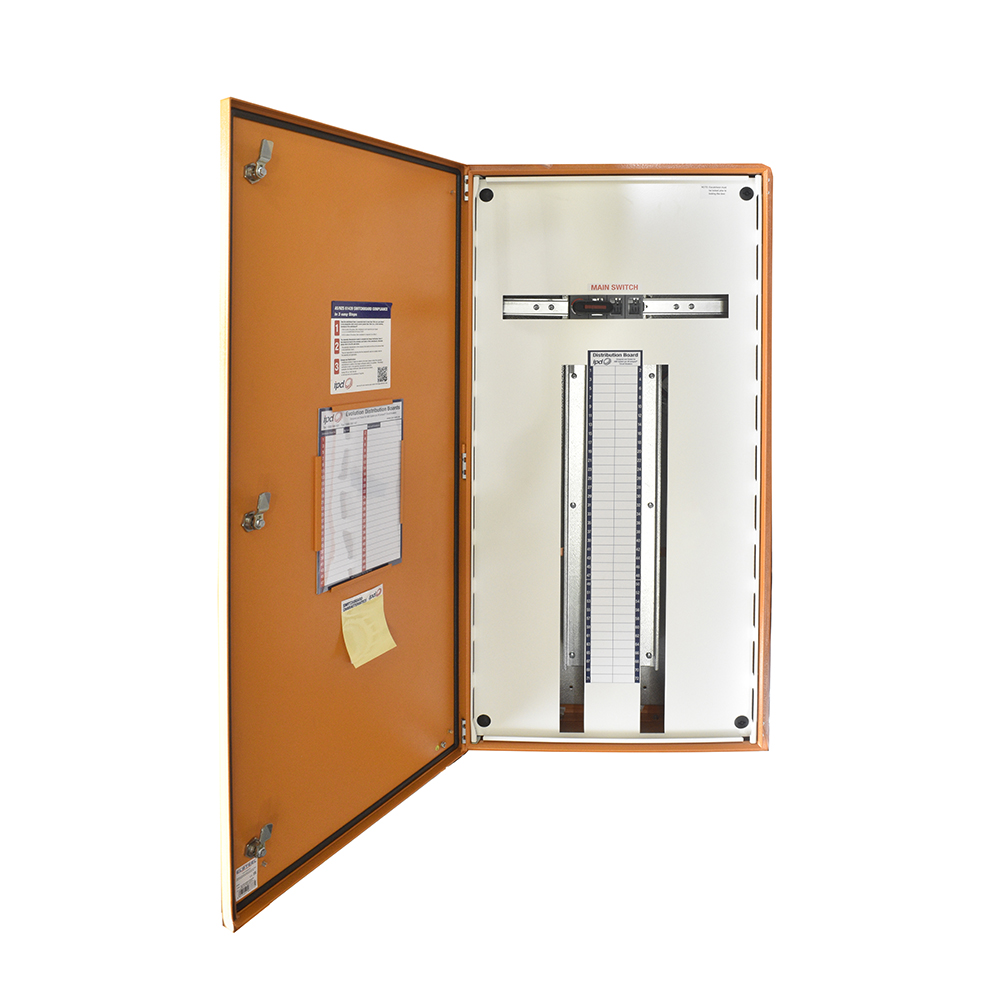

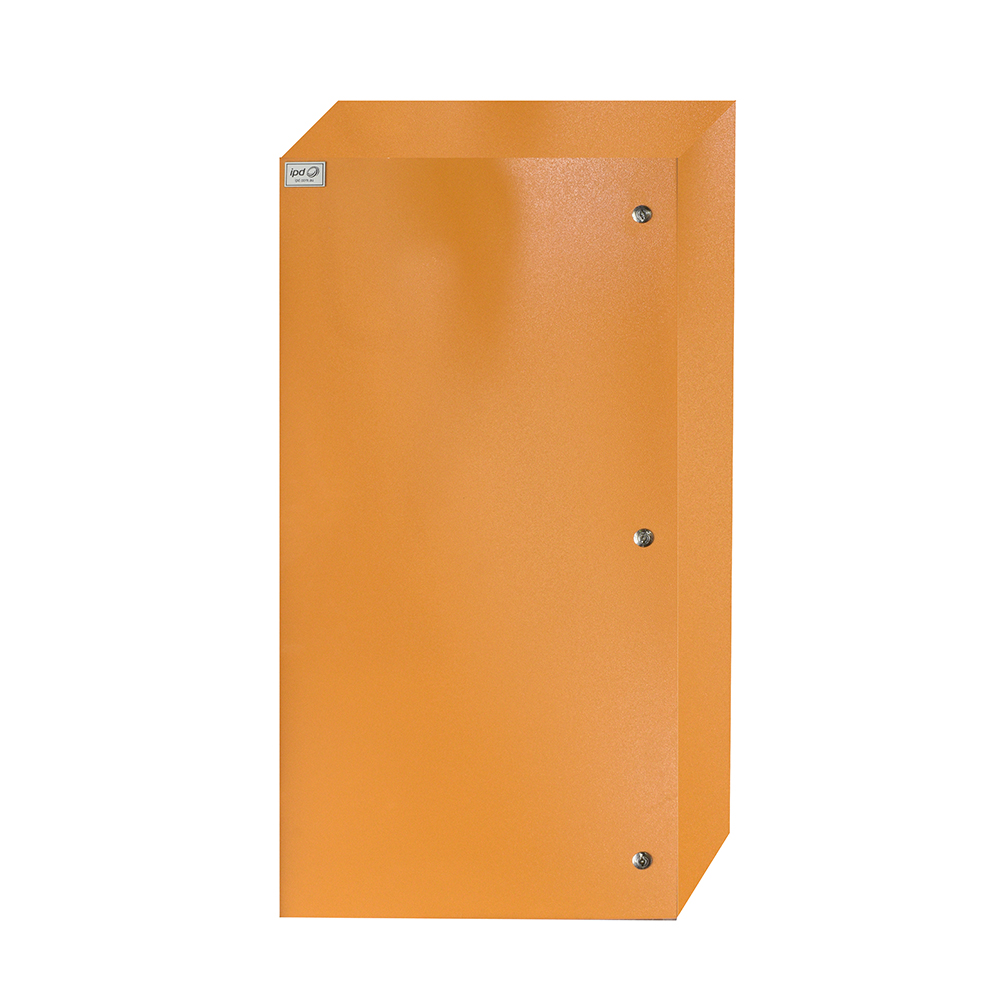

Evolution distribution boards are specifically designed for System pro M S200 range protection devices. These boards are constructed from 1.6mm Mild Steel in a vibrant RAL2000 orange colour. They have an IP65 rating, making them suitable for outdoor applications. The enclosure of the distribution board includes features such as OT250 LBS, Full Gland Plate Top & Bottom, a 60P encapsulated chassis, metal locks, and a hinged escutcheon. The dimensions of the board are 1000H x 600W x 200Dmm.

Brand	IPD
Colour	Orange, RAL2000
Degree of Protection	IP65
Dimensions (mm)	1000H x 600W x 200D
DIN Accessory Spaces	15
Material	Mild Steel
No. of Locks	3
No. of Poles	60P
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65A60T250 DB 60P IP65 ORANGE + OT250 LBS

Product Code: E65A60T250

Technical Specifications
