Current Consumption (mA)	10 or less
Emitting Element	Infrared LED
Output Operation	Switchable Light-ON/ Dark-ON
Sensing Range (mm)	100 to 2000
Standard Sensing Object	ø50 mm or more transparent, translucent or opaque object
Brand	PANASONIC
Ambient Temperature Range (°C)	–25 to +55
Degree of Protection	IP67
Material	Body-PBT, Lens-Acrylic
Operating State/Fault Indication	Operation - Orange LED, Stability and Power-Green LED
Outputs	NPN open-collector transistor
Rated Supply Voltage DC (V)	12 - 24
Series	CX-400
Type	Standard, Retroreflective
Weight (kg)	0.05

Position Switches & Sensors

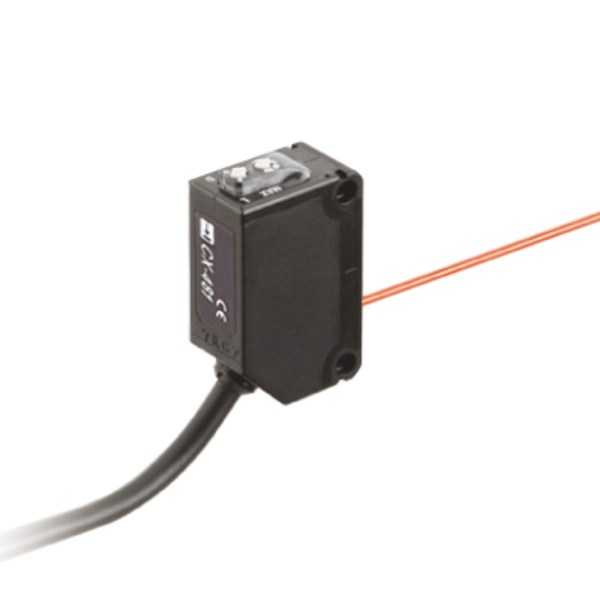

PANASONIC COMPACT PHOTOELECTRIC SENSOR RANGE 0.1-2m CX-482-J
