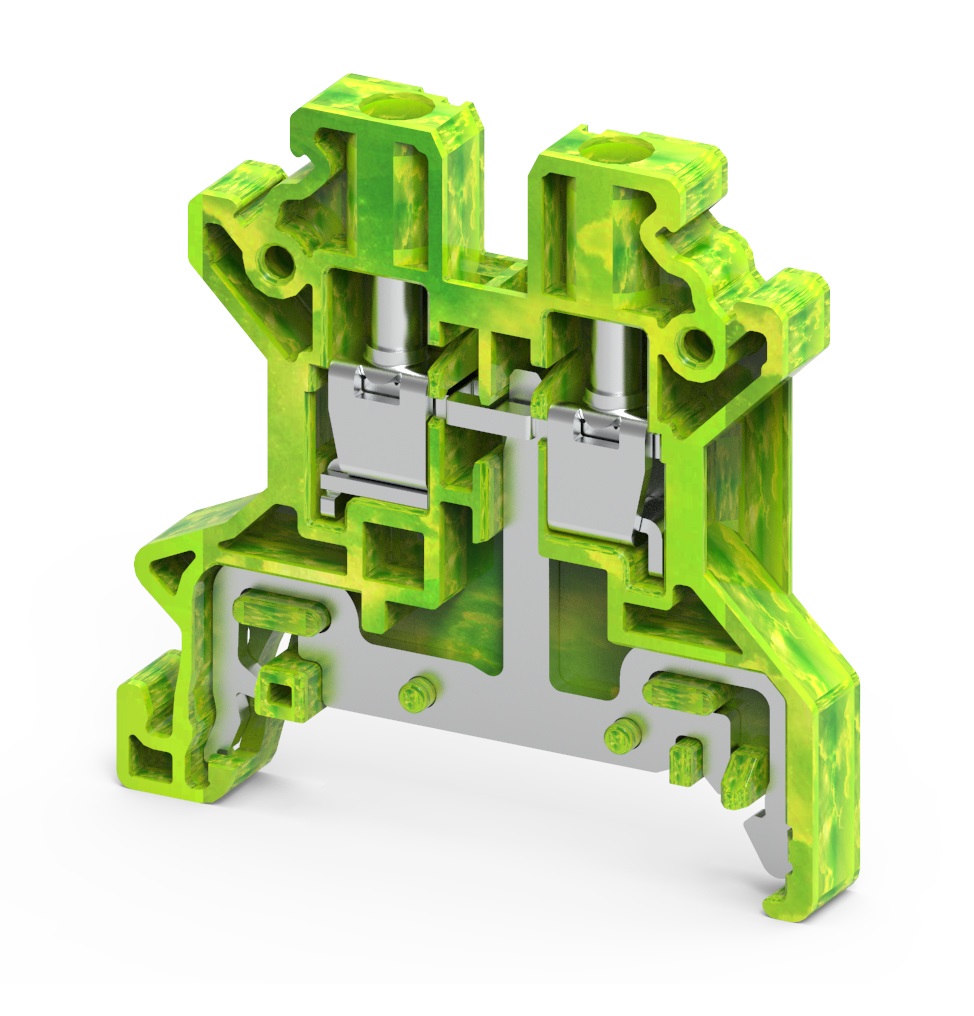

CONNECTWELL 4mm EARTH TERMINAL BLOCK REPLACES CGT4N, CTSG4 - Standard Feed Through Terminal Blocks

Product Code: CTSG4

DIN Rail Mounting	DIN 35/DIN 35-15 Rail
Operator Type	Screw Driver
Wire Entry	Side Entry
Brand	CONNECTWELL
Colour	Green-Yellow
Conductor Cross Section (mm²)	0.2 (min. ), 4 (max.)
Height (mm)	53.3
Housing Material	Polyamide
Length (mm)	45.7
Pack Quantity	50
Pollution Degree	3
Screw Size	M3
Surge Voltage (kV)	8
Tightening Torque (Nm)	0.5
Width (mm)	6
Wire Stripping Length (mm)	8
