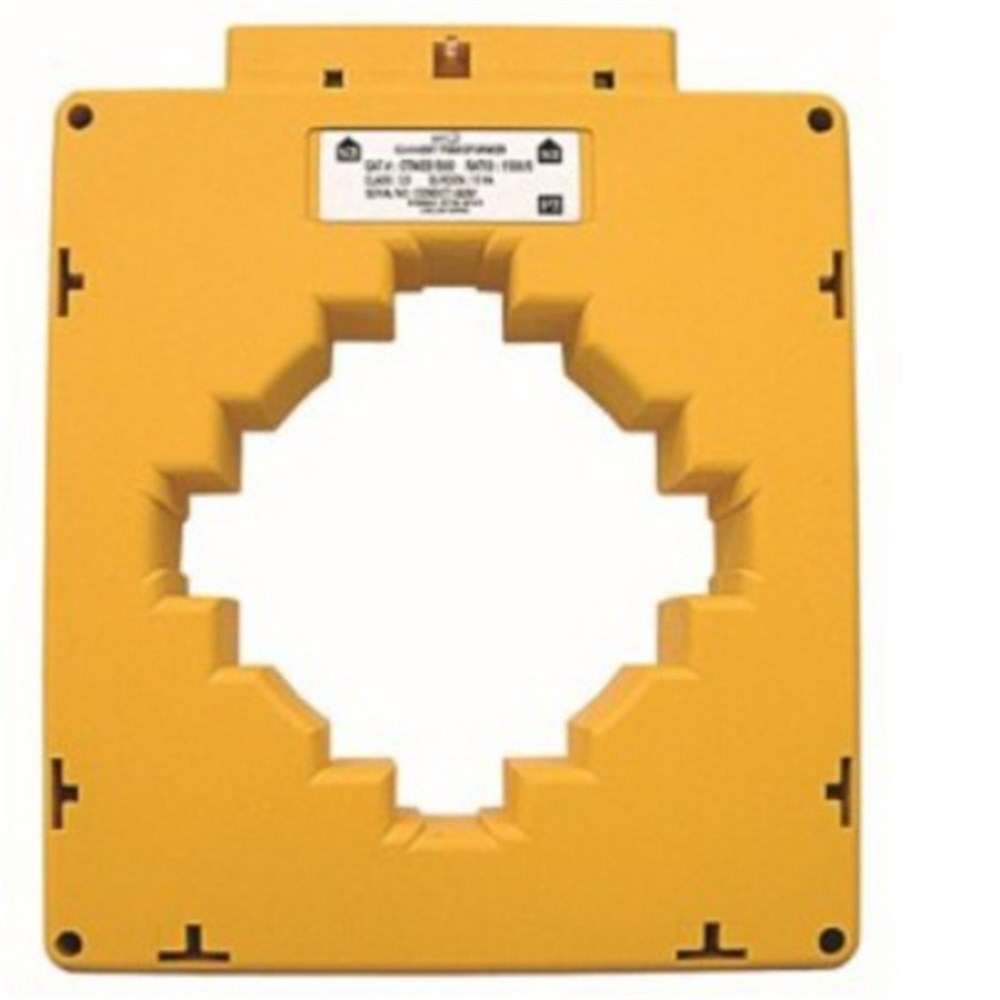

IPD CTME62500 CTME-6 SOLID-CORE CURRENT TRANSFORMER 2500/5 RATIO, CLASS 0.5 15VA

The CTME-6 solid-core current transformer is designed for accurate measurement of electrical currents. It has a current ratio of 2500/5 and an accuracy class of 0.5 at 15VA. The transformer features a single turn primary winding and is built with high impact flame retardant materials, ensuring durability. For convenience and safety, the CTME-6 comes with a clear sealable terminal cover as standard, along with knockouts in the terminal shrouds. This helps to protect the terminals and prevent any accidental contact. The operating temperature range for the CTME-6 is -20°C to +70°C, making it suitable for various environments. It has an insulation class of B (80°C), providing reliable insulation performance. In terms of dimensions, the CTME-6 measures 220Hx192Wx42Dmm. It has a cable diameter opening of 126.5mm and a bar through size of 58x126.5mm. Installation options include fixed screw mounting or DIN rail mounting. The package includes mounting brackets and a busbar fixing device for easy installation. Overall, the CTME-6 solid-core current transformer offers accurate current measurement, robust construction, and convenient installation options for various applications in electrical systems.
