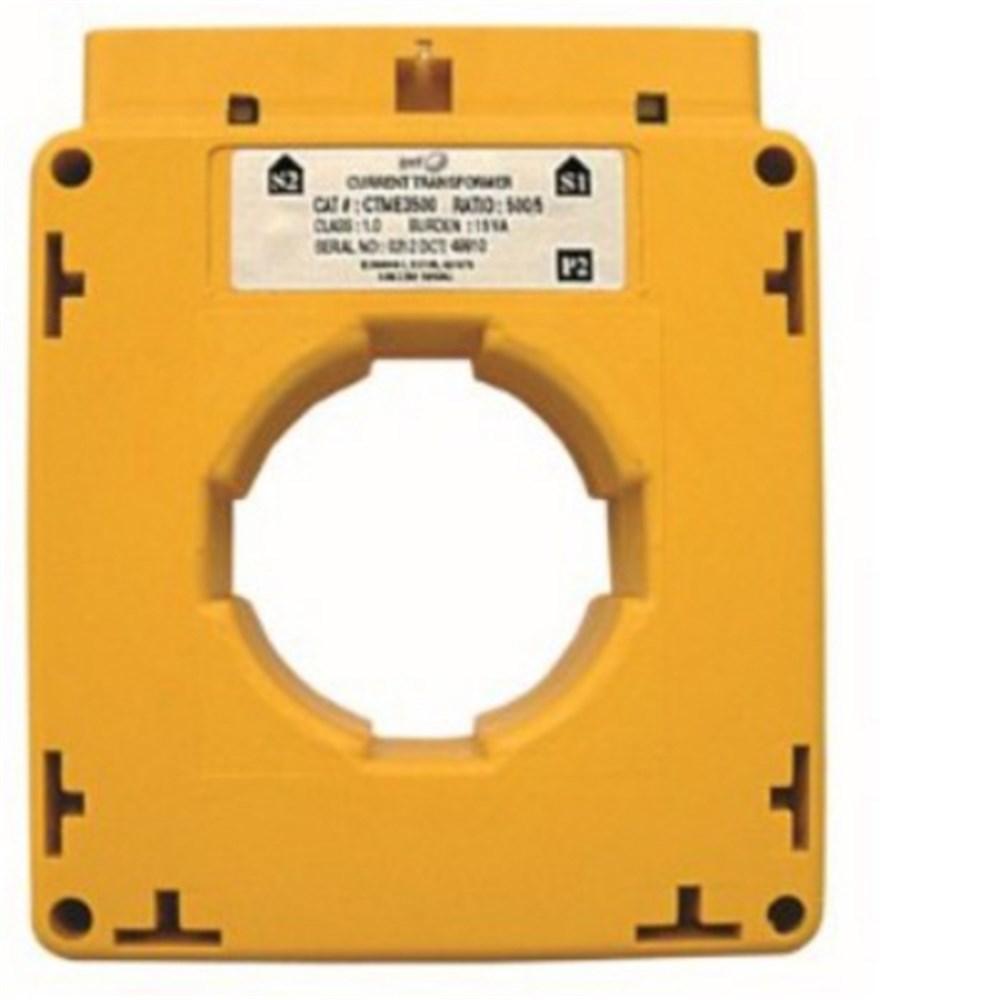

IPD CTME3800 CTME-3 SOLID-CORE CURRENT TRANSFORMER 800/5 RATIO, CLASS 0.5 15VA

The CTME-3 solid-core current transformer is designed for accurate measurement of electrical currents. It has a current ratio of 800/5 and an accuracy class of 0.5 at 15VA. The transformer features a single turn primary winding and a robust design made from high impact flame retardant materials. It comes with a clear sealable terminal cover as standard and knockouts in the terminal shrouds for easy installation. The CTME-3 operates within a temperature range of -20°C to +70°C and has an insulation class B (80°C). Its dimensions are 115Hx97Wx42Dmm, with a cable diameter opening of 48mm. The transformer can be mounted using fixed screws or DIN rail mounting, and it includes mounting brackets and a busbar fixing device for convenience.
