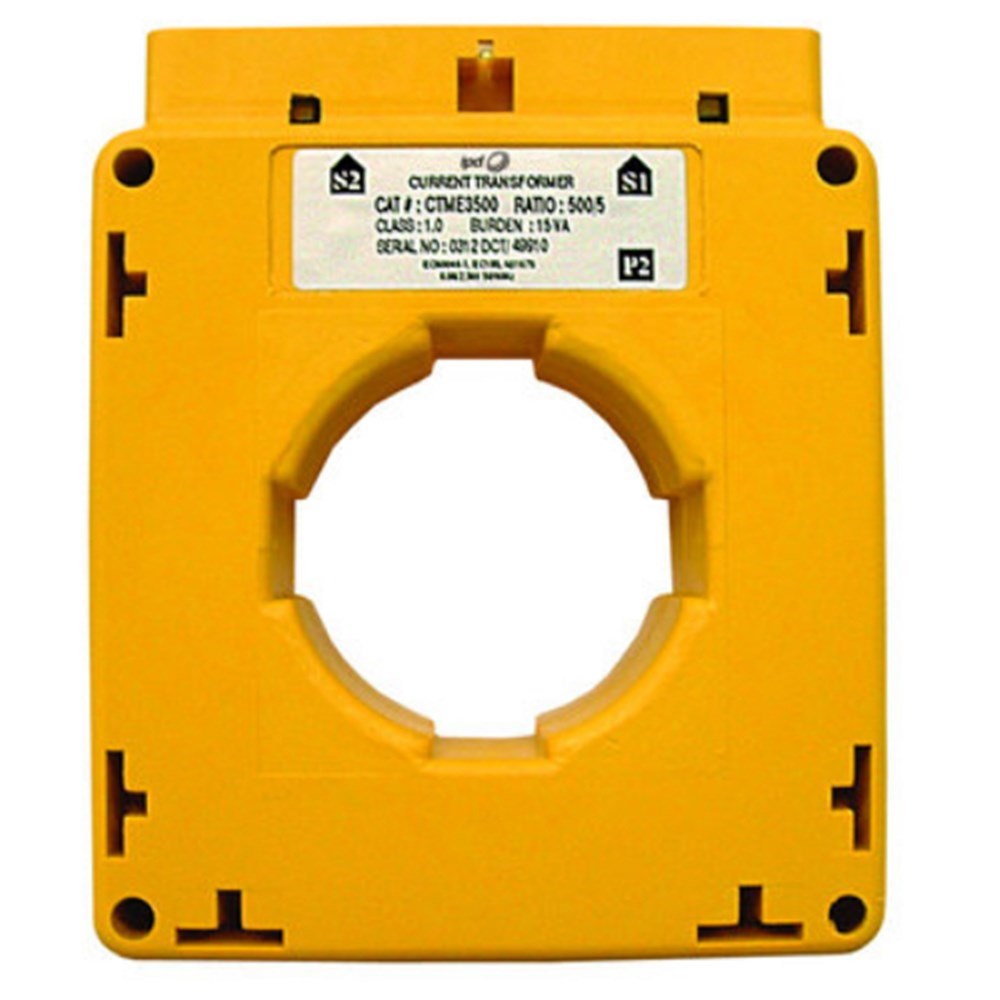

IPD CTME3500 CTME-3 SOLID-CORE CURRENT TRANSFORMER 500/5 RATIO, CLASS 1 15VA

The CTME-3 is a solid-core current transformer designed for accurate measurement. It has a current ratio of 500/5 and an accuracy class of 1 at 15VA. The transformer features a single turn primary winding and is built with high impact flame retardant materials, ensuring durability. It comes with a standard clear sealable terminal cover and knockouts in the terminal shrouds. The CTME-3 operates within a temperature range of -20°C to +70°C and has an insulation class of B (80°C). Its dimensions are 115Hx97Wx42Dmm, with a cable diameter opening of 48mm. The transformer can be mounted using fixed screws or DIN rail mounting, and it includes mounting brackets and a busbar fixing device for easy installation.
