Product Code: CT80/600

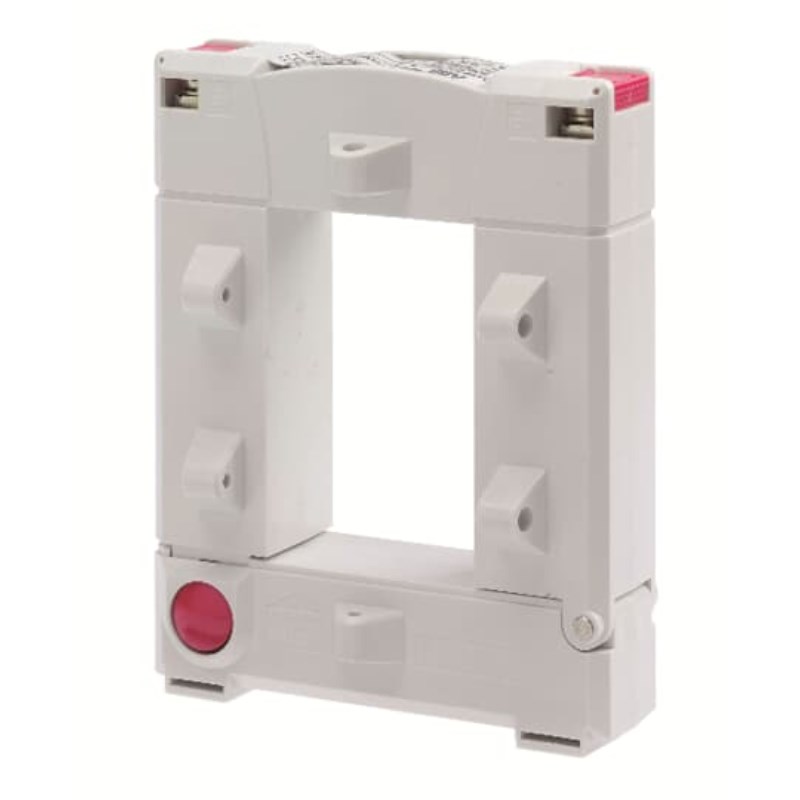

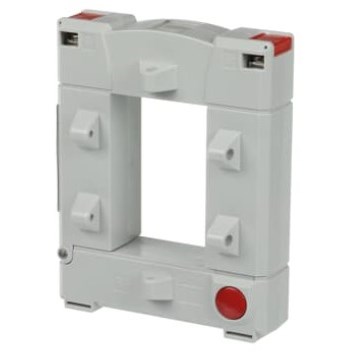

Split-core current transformer with current ratio 600/5 and accuarcy class 0.5 at 2.5VA. Test voltage 3kV at 50Hz/1min and insulation class E (120 °C). Equipped with a sealable terminals cover for secondary terminals. Housing material: self-extinguishing thermoplastic resin V0. Dimensions of CT80 type are 152Hx125Wx34Dmm with vertical bar through opening 3x80x10mm. Can be adapted to all common mounting systems: primary cable, primary busbar, DIN rail and wall-mounting.

Brand	ABB
Apparent Power Output (VA)	320
CT Ratio	600/5
Current Limit Function	Full Scale 5
Net Weight (kg)	1.1
Power Loss (VA)	3.4
Rated Primary Current - I?? (A)	600
Rated Secondary Current - I?? (A)	5
Accuracy	±0,5%
Busbar Cross Section (mm²)	3X80X10
Degree of Protection	IP20
Dimensions (mm)	125 X 152 x 34
Mounting Type	Through Primary
Operational Temperature Range (°C)	-25 to +50
Rated Frequency (Hz)	50 / 60
