Product Code: CT80/1000

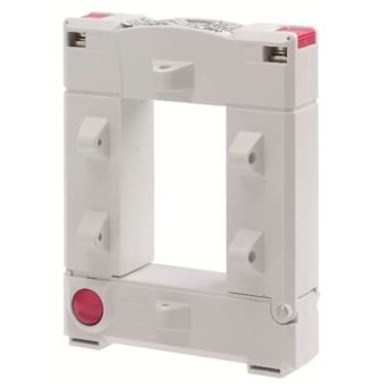

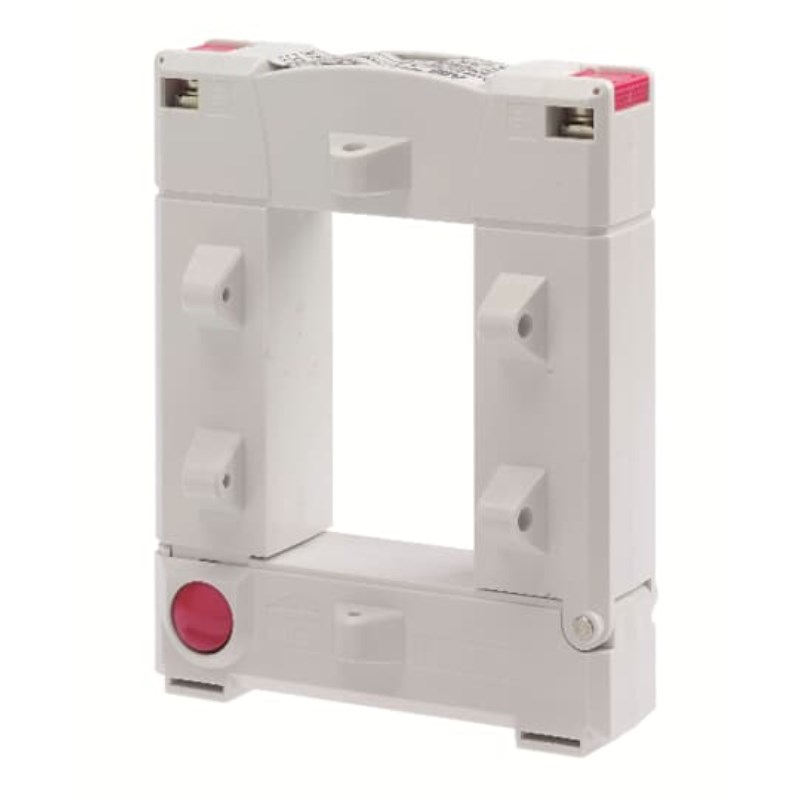

Split-core current transformer with current ratio 1000/5 and accuarcy class 0.5 at 5VA. Test voltage 3kV at 50Hz/1min and insulation class E (120 °C). Equipped with a sealable terminals cover for secondary terminals. Housing material: self-extinguishing thermoplastic resin V0. Dimensions of CT80 type are 152Hx125Wx34Dmm with vertical bar through opening 3x80x10mm. Can be adapted to all common mounting systems: primary cable, primary busbar, DIN rail and wall-mounting.

Apparent Power Output (VA)	250
CT Ratio	1000/5
Current Limit Function	Full Scale 5
Power Loss (VA)	3.4
Brand	ABB
Rated Primary Current - I?? (A)	1000
Rated Secondary Current - I?? (A)	10
Accuracy	±0.5%
Busbar Cross Section (mm²)	3X80X10
Degree of Protection	IP20
Mounting Type	Split core through primary
Operational Temperature Range (°C)	-25 to +50
Rated Frequency (Hz)	50 / 60

Current Transformers

ABB CT80/1000 SPLIT-CORE CURRENT TRANSFORMER 1000/5 RATIO, CLASS 0.5 5VA CT80
