Product Code: CT8-V/600

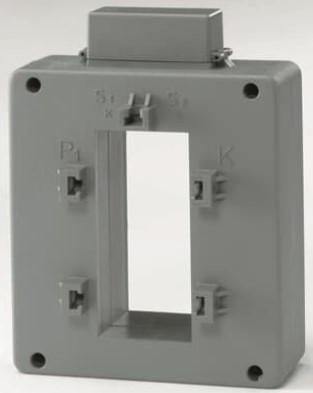

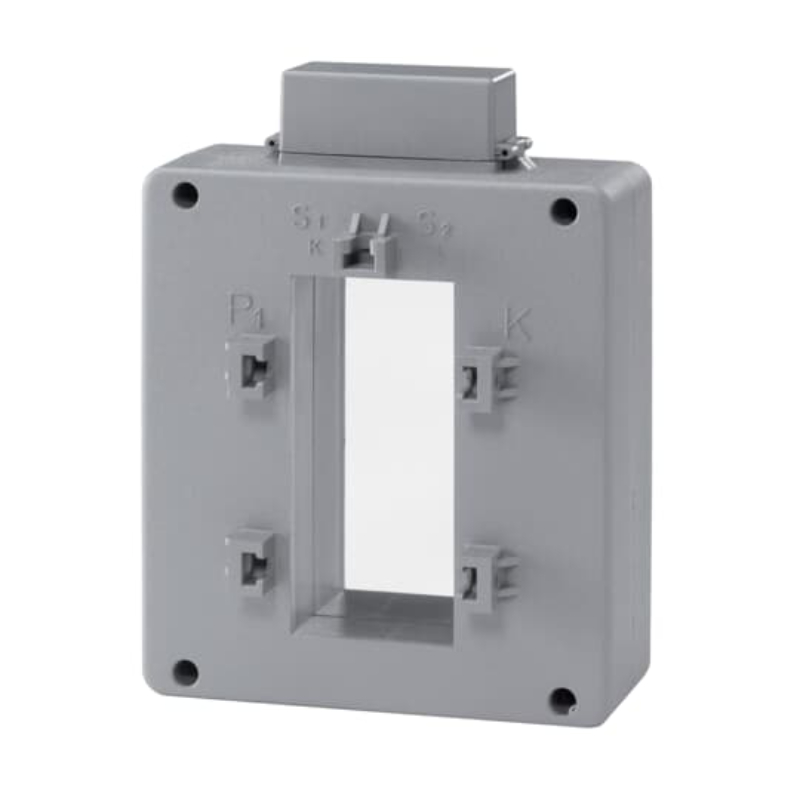

Solid-core current transformer with current ratio 600/5 and accuarcy class 0.5 at 10VA. Test voltage 3kV at 50Hz/1min and insulation class E (120 °C). Equipped with a sealable terminals cover for secondary terminals. Housing material: self-extinguishing thermoplastic resin V0. Dimensions of CT8-V type are 141Hx109Wx41Dmm with cable diameter opening of 2x35mm and vertical bar through 80x30mm and 3x80x5mm. Can be adapted to all common mounting systems: primary cable, primary busbar, DIN rail and wall-mounting.

Apparent Power Output (VA)	3
Cable Use	Cable and Vertical bar
CT Ratio	600/5
Current Limit Function	Full Scale 5
Brand	ABB
Rated Primary Current - I?? (A)	600
Rated Secondary Current - I?? (A)	5
Accuracy	±0.5%
Busbar Cross Section (mm²)	3X80X5
Cable Cross Section (mm²)	2X35
Degree of Protection	IP30
Mounting Type	Through primary
Operational Temperature Range (°C)	-5 to +50
Power Loss (W)	16
Rated Frequency (Hz)	50 / 60
