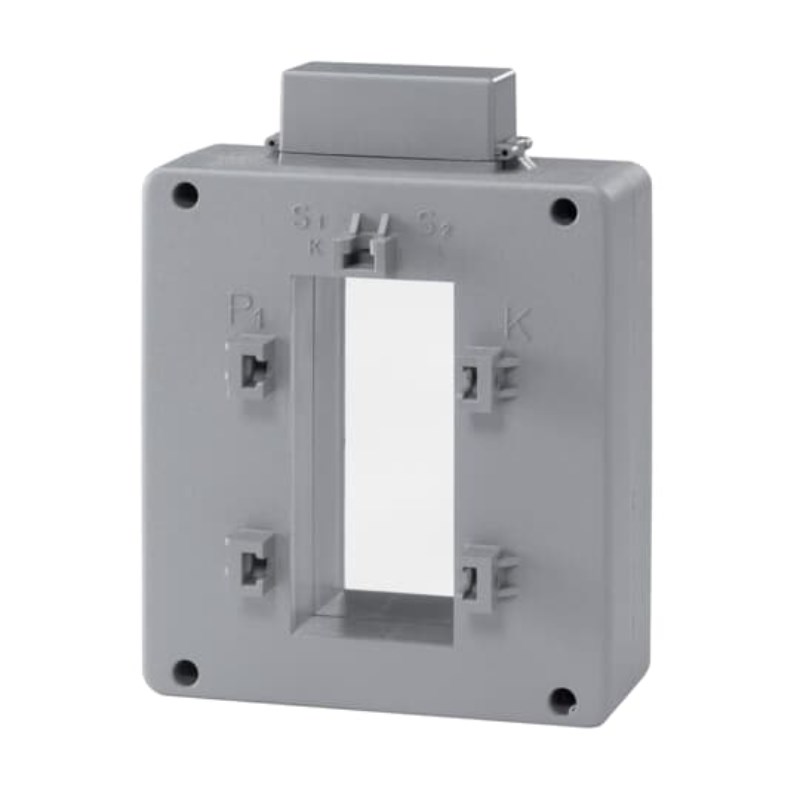

ABB CT8-V/2500 SOLID-CORE CURRENT TRANSFORMER 2500/5 RATIO, CLASS 0.5 20VA CT8-V

Solid-core current transformer with a current ratio of 2500/5 and an accuracy class of 0.5 at 20VA. It has been tested at a voltage of 3kV and a frequency of 50Hz for 1 minute, meeting the insulation class E (120 °C) requirements. The transformer is equipped with a sealable terminals cover for the secondary terminals. The housing material is made of self-extinguishing thermoplastic resin V0. The CT8-V type has dimensions of 141Hx109Wx41Dmm and features a cable diameter opening of 2x35mm, as well as a vertical bar through 80x30mm and 3x80x5mm. This current transformer can be easily adapted to various mounting systems including primary cable, primary busbar, DIN rail, and wall-mounting options.
