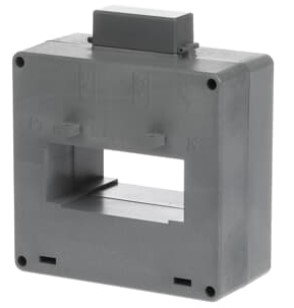

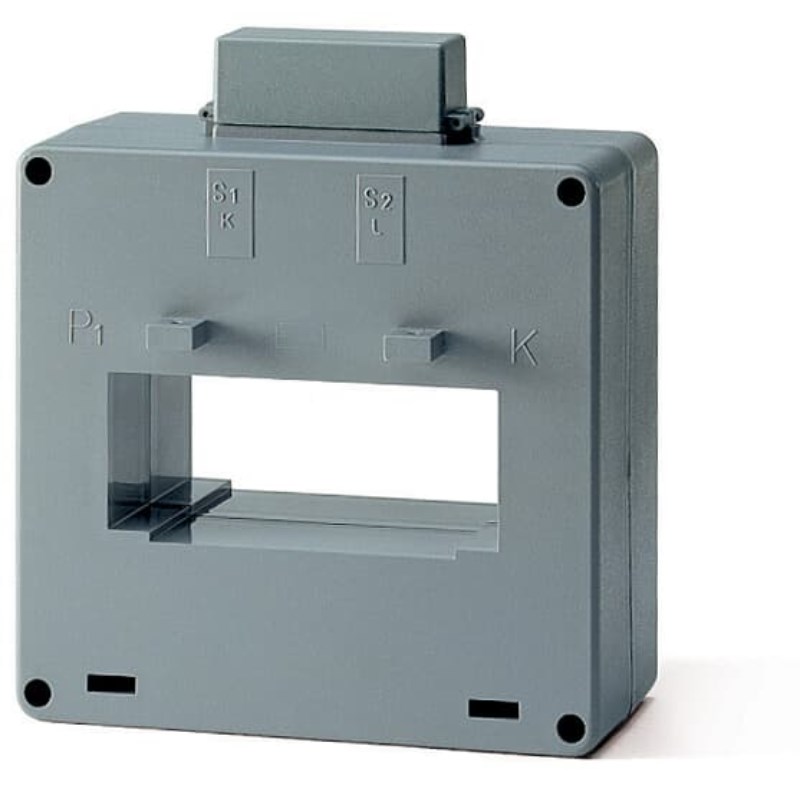

ABB CT8/1000 SOLID-CORE CURRENT TRANSFORMER 1000/5 RATIO, CLASS 0.5 10VA CT8

Solid-core current transformer with a current ratio of 1000/5 and accuracy class of 0.5 at 10VA. It has been tested at a voltage of 3kV and frequency of 50Hz for 1 minute, meeting insulation class E (120 °C) standards. The transformer is equipped with a sealable terminals cover for secondary terminals. The housing material is made of self-extinguishing thermoplastic resin V0. The CT8 type has dimensions of 142Hx125Wx61.5Dmm, with a cable diameter opening of 2x30mm and a bar through size of 80x30mm. It can be easily adapted to various mounting systems including primary cable, primary busbar, DIN rail, and wall-mounting options.
