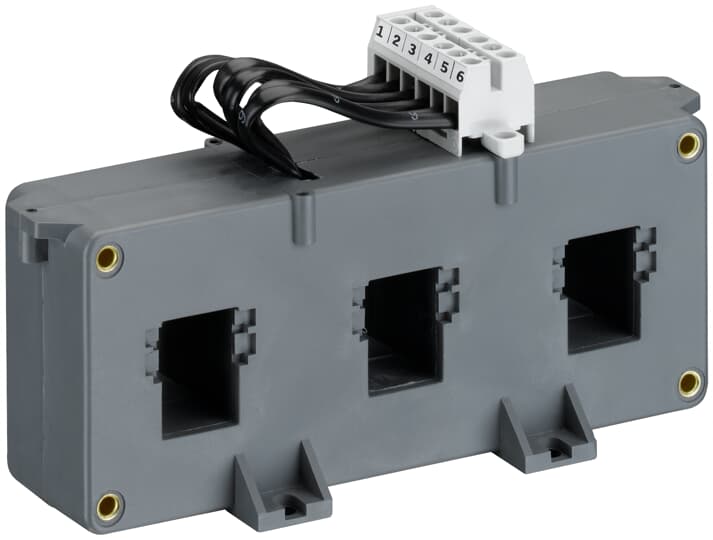

ABB CT4L310R/4, 3-PHASE CURRENT TRANSFORMER RATED NOMINAL CURRENT RANGE 185 .... 310A CT4L310R/4

Product Code: CT4L310R/4

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Model 3-phase Current Converter Set
Brand ABB
Product Type Accessory
Copper Rail Yes
Current Ratio 310/4
No. of Phases 3
Nominal Current (A) 180 - 310
Overcurrent Limiting Factor FS 10
Rated Primary Current - I?? (A) 310
Rated Secondary Current - I?? (A) 4
Terminal Type Screw Terminals
Window Size H x W (mm) 28.5 x 21

Description

External current transformer for currents up to 310 A primary side. The secondary side is feed to the UMC100.3 motor controller. This enables the UMC100.3 to see up to the primary current.
