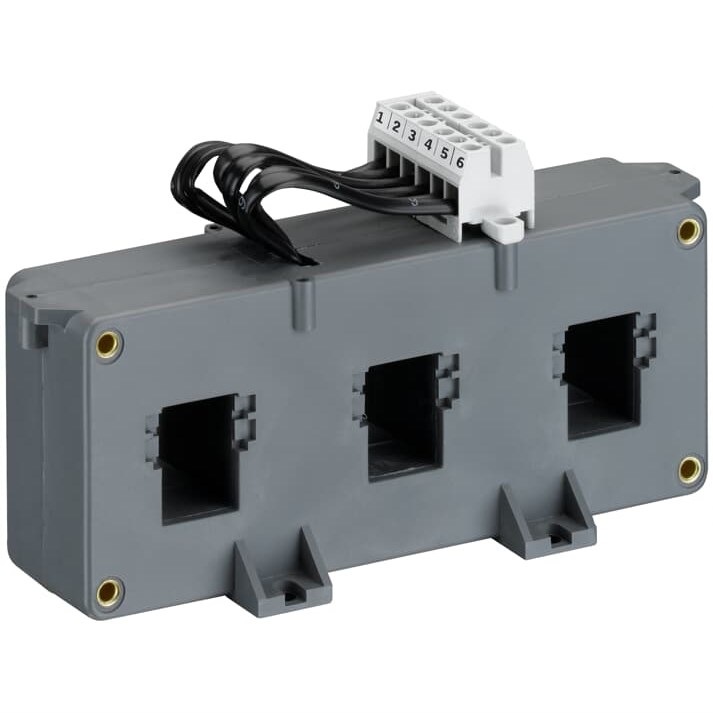

ABB CT4L185R/4, 3-PHASE CURRENT TRANSFORMER RATED NOMINAL CURRENT RANGE 60 .... 185A CT4L185R/4

Product Code: CT4L185R/4

External current transformer for currents up to 185 A primary side. The secondary side is feed to the UMC100.3 motor controller. This enables the UMC100.3 to see up to the primary current.

Technical Specifications

Copper Rail Yes
Current Ratio 185/4
Overcurrent Limiting Factor FS 10
Window Size H x W (mm) 28.5 x 21
Brand ABB
Rated Primary Current - I?? (A) 185
Rated Secondary Current - I?? (A) 4
Model 3-phase Current Converter Set
No. of Phases 3
Nominal Current (A) 60 - 185
Terminal Type Screw Terminals
