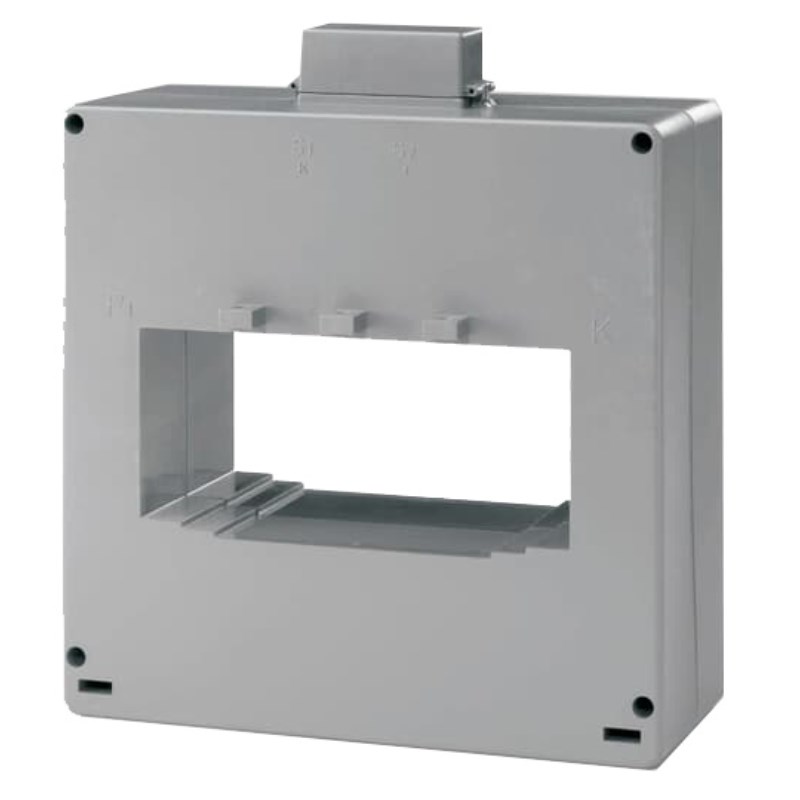

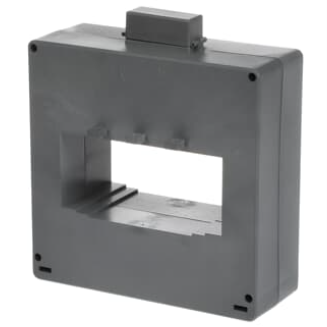

ABB CT12/800 SOLID-CORE CURRENT TRANSFORMER 800/5 RATIO, CLASS 0.5 15VA CT12

The Solid-core current transformer is designed with a current ratio of 800/5 and an accuracy class of 0.5 at 15VA. It has been tested at a voltage of 3kV and operates at a frequency of 50Hz for 1 minute. The transformer has an insulation class E, which can withstand temperatures up to 120 degrees Celsius. To ensure safety and protection, the transformer is equipped with a sealable terminals cover for the secondary terminals. The housing material used is a self-extinguishing thermoplastic resin V0. The CT12 type transformer has dimensions of 196Hx180Wx68.5Dmm. It features a cable diameter opening of 2x50mm and can accommodate bars with sizes of 80x50mm, 100x50mm, and 125x50mm. This current transformer is versatile and can be adapted to various mounting systems including primary cable, primary busbar, DIN rail, and wall-mounting.
