ETIM 7.0	EC001439 - Timer relay
Net Weight (kg)	0.053
Rated Operational Current AC-12 230V (A)	4 A
Rated Operational Current AC-15 230V (A)	3 A
Rated Operational Current DC-12 24V (A)	4 A
Rated Operational Current DC-13 24V (A)	2 A
Connecting Capacity	Flexible 1x 0.5 ... 2.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 1x 0.5 ... 4 mm² Rigid 2x 0.5 ... 1.5 mm²
Ambient Temperature Range (°C)	-20 to 60
Degree of Protection	Housing IP50 Terminals IP20
Dimensions (mm)	17.5W X 70H X 63D
ETIM 8.0	EC001439 - Timer relay
Pollution Degree	3
Rated Control Supply Voltage AC (V)	24 ... 240
Rated Control Supply Voltage DC (V)	24 ... 48
Rated Frequency (Hz)	50 / 60
Rated Impulse Withstand Voltage (kV)	4
Standards	CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61812-1 UL 508
Storage Temperature Range (°C)	-40 to 85
Terminal Type	Screw
Tightening Torque (Nm)	0.5 - 0.8
Time Ranges	0.05s - 100h
Wire Stripping Length (mm)	7

Electrical Time Switches, Timers & Control Relays

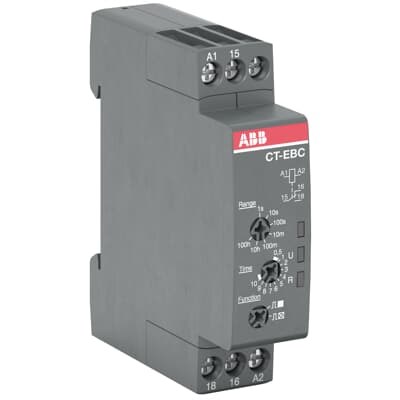

ABB TIME RELAY, FLASHER 1CO 24-48VDC 24-240VAC CT-EBC.12
