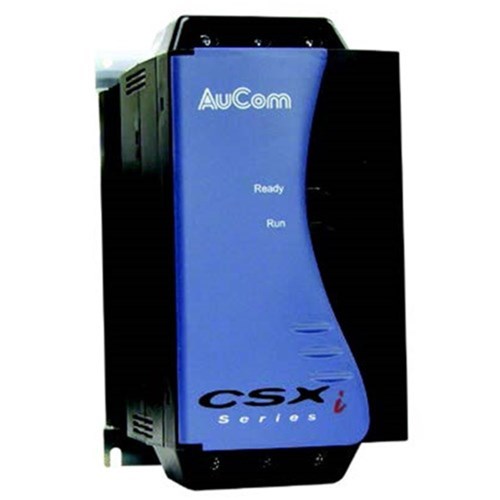

AuCom CSXI030V4C1EG-RC SOFT STARTER PANEL WITH ROOF CANOPY 30KW 60A 200-440VAC IP66 KIT

Product Code: CSXI030V4C1EG-RC

This 30kW panel is a compact and lightweight soft starter. It has current ratings of 60A for medium-duty applications and 49A for heavy-duty applications. The panel comes with a roof canopy that has an IP66 rating, ensuring protection against dust and water. The colour of the canopy is grey (RAL7035). The dimensions of the panel are 600mm in height, 400mm in width, and 300mm in depth.

Technical Specifications

Canopy Included Yes
Integrated LED Module Included (230V)
Brand AuCom
Colour Grey (RAL7035)
Degree of Protection IP66
Dimensions (mm) 400W X 600H X 300D
Material Mild Steel
Motor Power - Medium Duty 400-415V (kW) 30
Mounting Type Wall mount
Rated Control Supply Voltage AC (V) 110- 240/380 - 440
Rated Current - Heavy Duty (A) 49
Rated Current - Medium Duty (A) 60
Rated Supply Voltage AC (V) 200 - 440
