Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	6 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	91.30%
External Input Fuse Recommendation	B-16 A / C-10 A
Input Inrush Current (A)	85
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-120
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	50
Output Current Range (A)	10 - 8.6
Output Power (W)	240
Output Voltage (V)	24-28
Power Factor	0.57
Power Reserve Type	Power Boost
Power Reserves	20%
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	60W x 124H x 117D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	0 to 70
Power Loss (W)	23.4
Range	DIMENSION
Rated Current (A)	10
Series	C series
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	700

Industrial Power Supplies

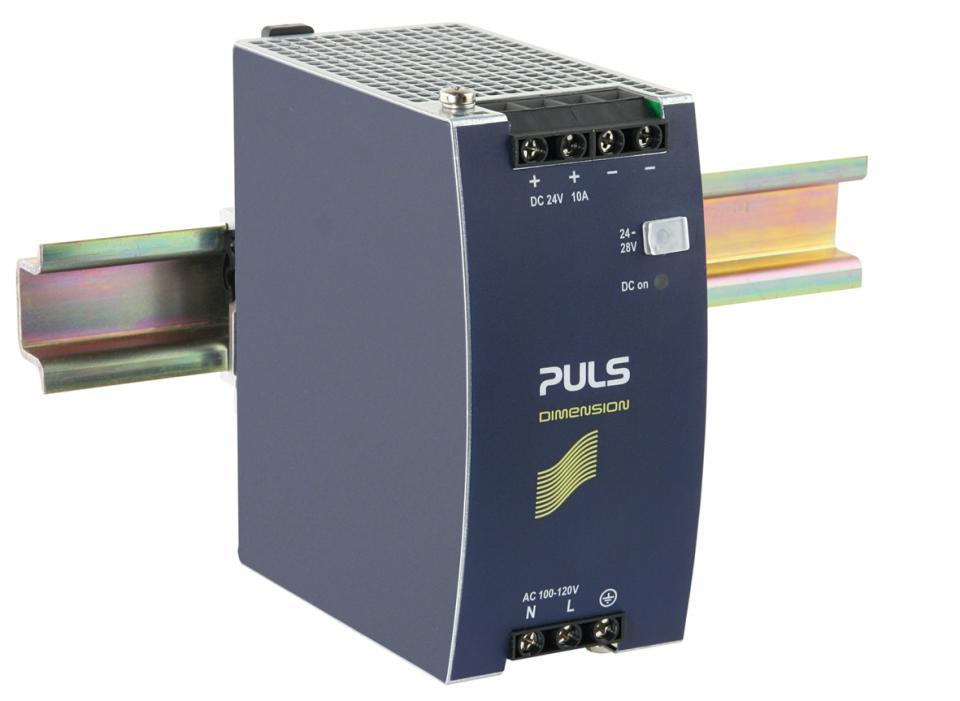

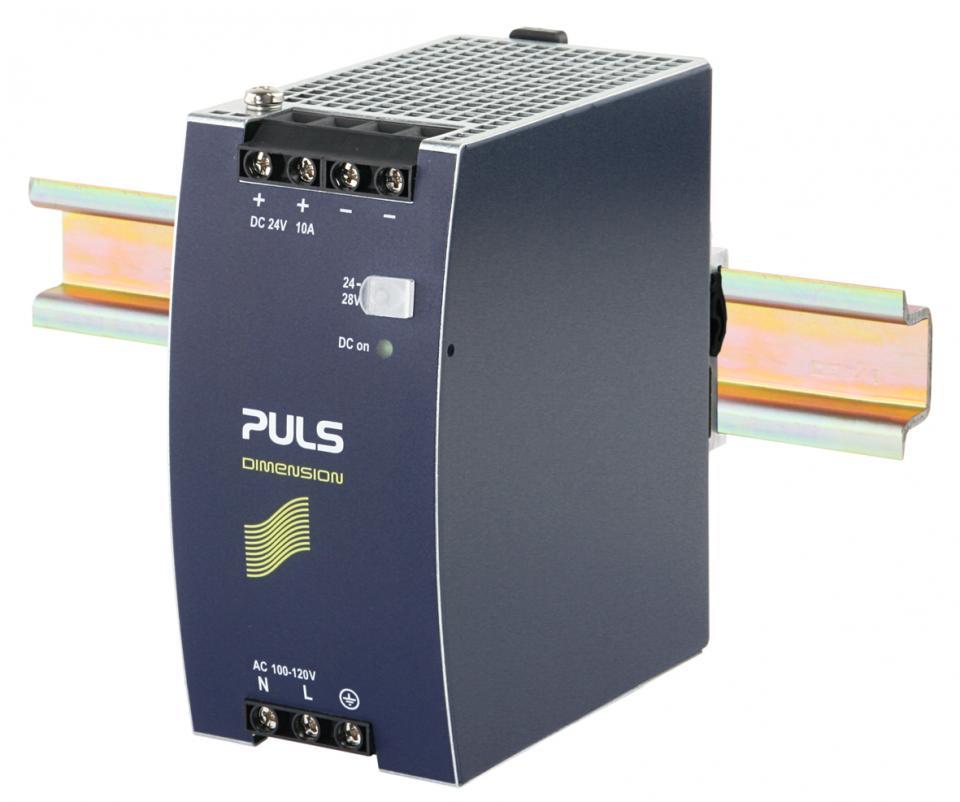

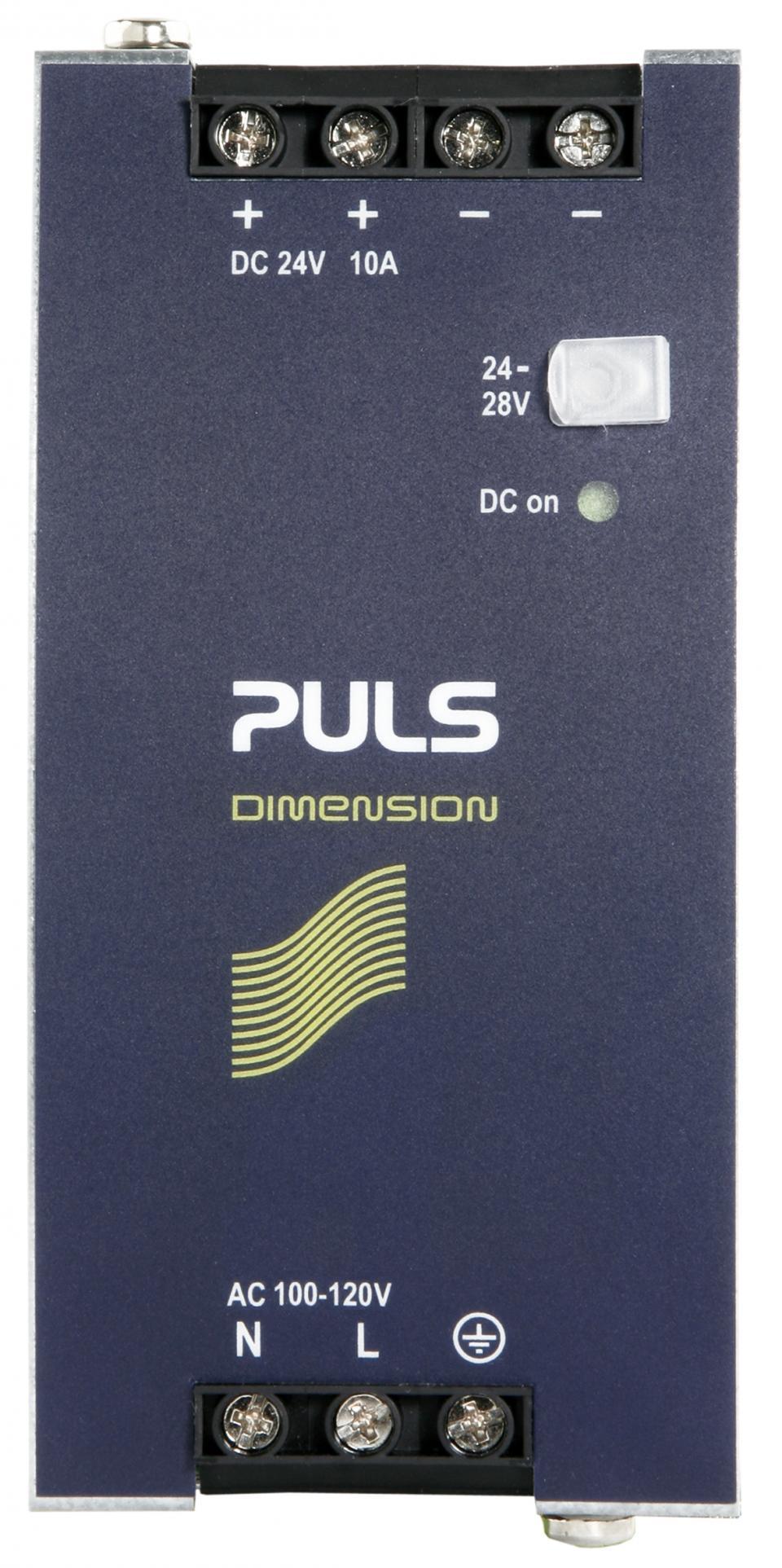

PULS POWER SUPPLY 24V DC OUTPUT, 1 PHASE CS10.243
