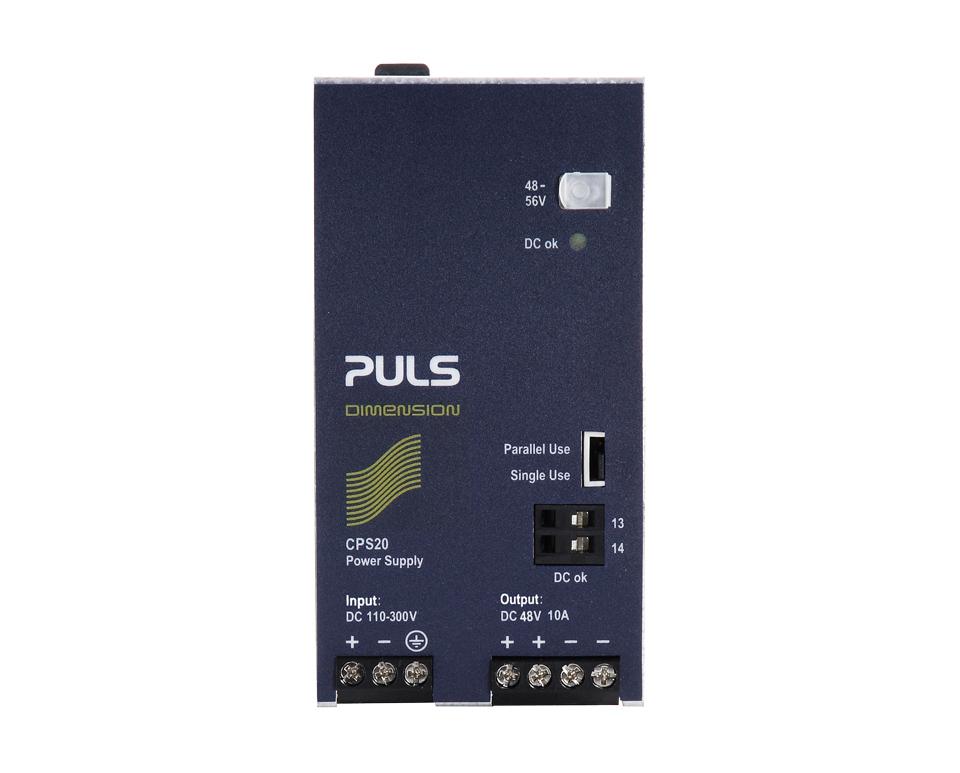

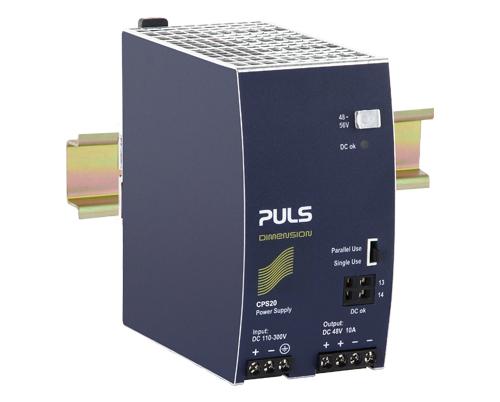

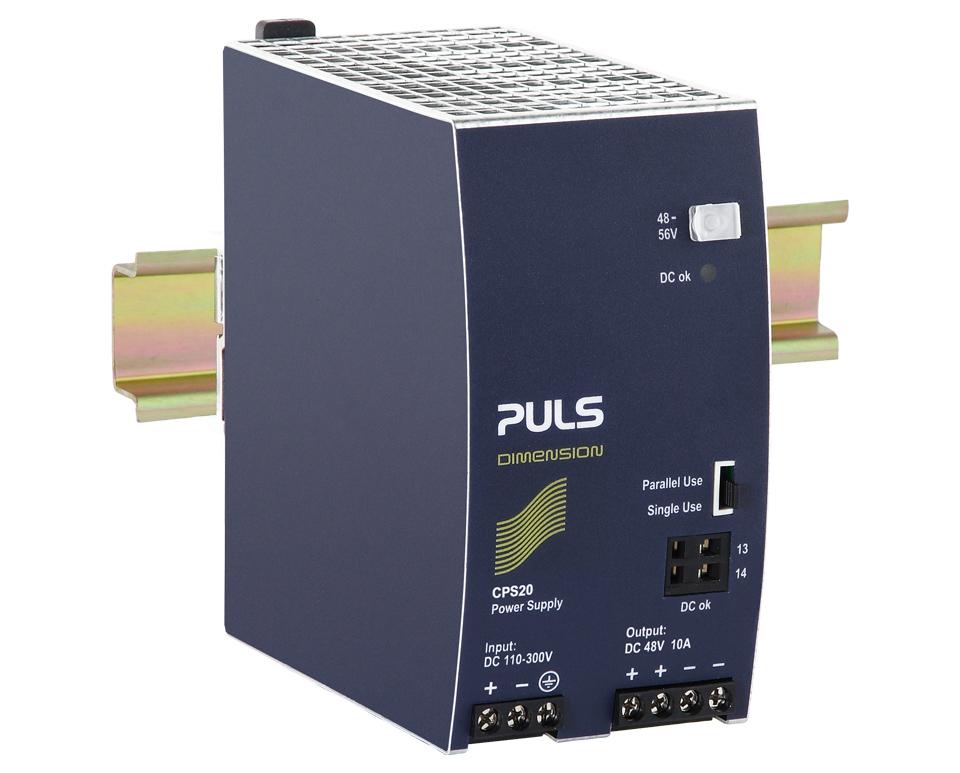

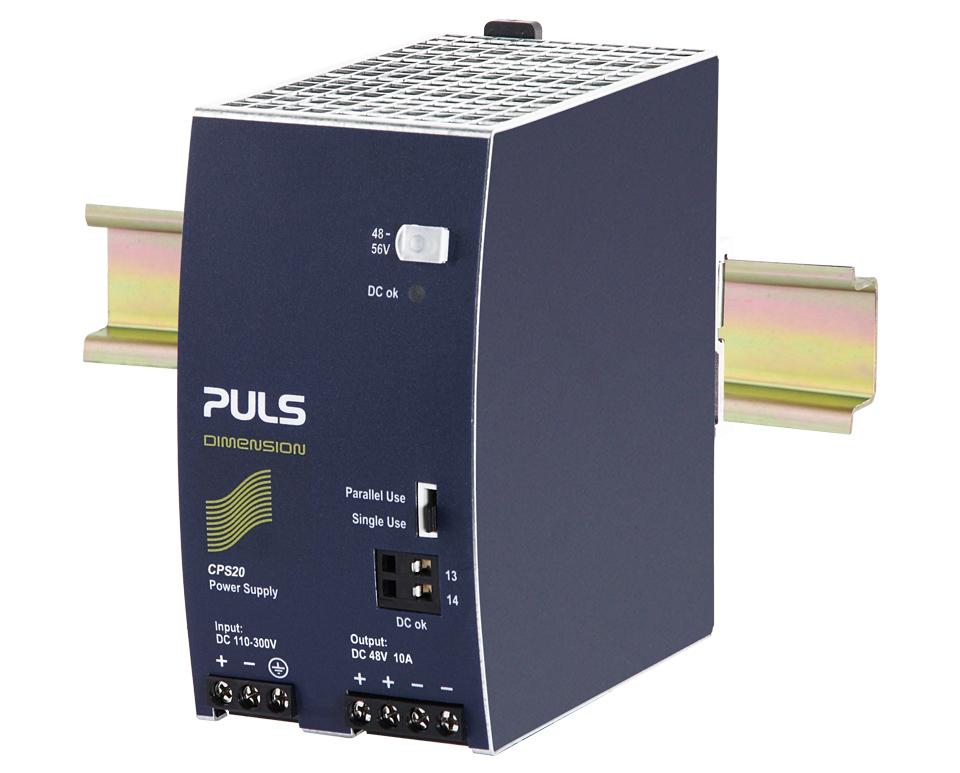

PULS DC/DC CONVERTER, 48V, 10A CPS20.481-D1

The 88-360V DC wide-range input power supply is a compact solution with a width of only 65mm. It offers high efficiency, up to 94.6%, ensuring optimal performance. This product is ATEX and IECEx approved, meeting the necessary safety standards. With excellent partial load efficiency and 20% output power reserves, this power supply can handleVarying loads effectively. It features the Safe HiccupPLUS overload mode, which ensures safe operation even under high overload conditions. The fuse tripping is easy due to the high overload current. The power supply has minimal inrush current surge, preventing any sudden spikes in current during startup. It can operate at full power between -25°C and +60°C, making it suitable forVarious environments. For added convenience, the DC-OK relay contact provides status indication. The reverse input polarity protection safeguards against incorrect connections. Additionally, this power supply has a current sharing feature that allows for parallel use when multiple units are required.
