Product Code: CP10.242

The DC 110-300V wide-range input power supply is designed with a compact width of only 39mm. It boasts an impressive efficiency of up to 95.2% and excellent partial load efficiency. With 20% output power reserves, it ensures reliable performance even under demanding conditions. Featuring the Safe HiccupPLUS overload mode, this power supply offers enhanced protection by easily breaking fuses in the event of high overload peak current. It also incorporates active power factor correction (PFC) for improved energy efficiency. With minimal inrush current surge, this power supply minimizes the risk of electrical surges during startup. It operates at full power within a wide temperature range from -25°C to +60°C, making it suitable forVarious environments. Additionally, it includes a DC-OK relay contact for convenient monitoring and an enhanced DC input for optimized performance.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
DC-OK Signal	Yes
Derating	6 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	95.20%
External Input Fuse Recommendation	B-6 A / C-6 A
Harmonic Correction	Active
Input Inrush Current (A)	6 / 9
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-300
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	300
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	110
Output Current Range (A)	10 - 8.6
Output Power (W)	240
Output Voltage (V)	24-28
Power Factor	0.97
Power Reserve Type	Power Boost
Power Reserves	20%
Special Application	Hazardous location, Marine, Semiconductor
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	39W x 124H x 117D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	12.1
Range	DIMENSION
Rated Current (A)	10
Series	C series
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	600

Industrial Power Supplies

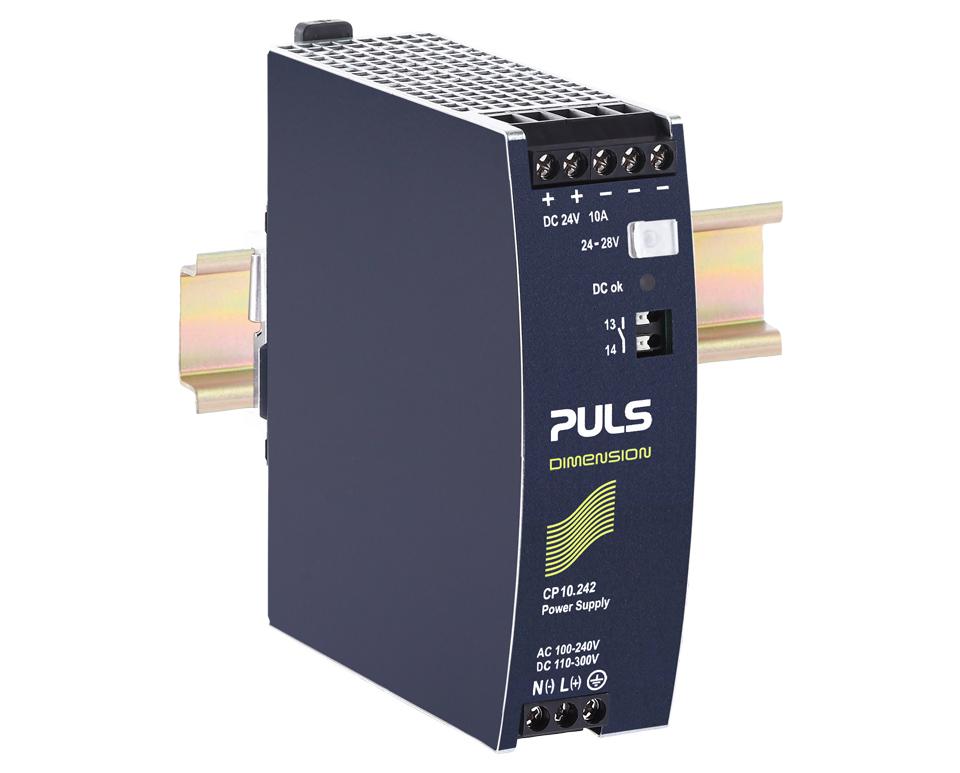

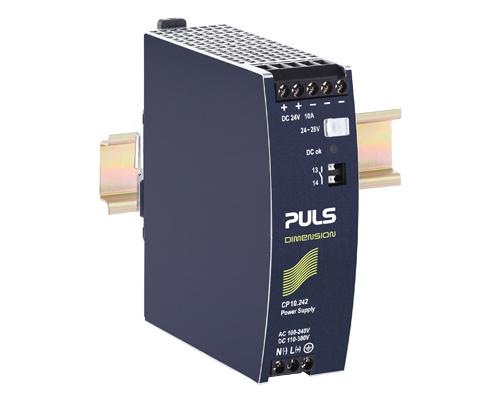

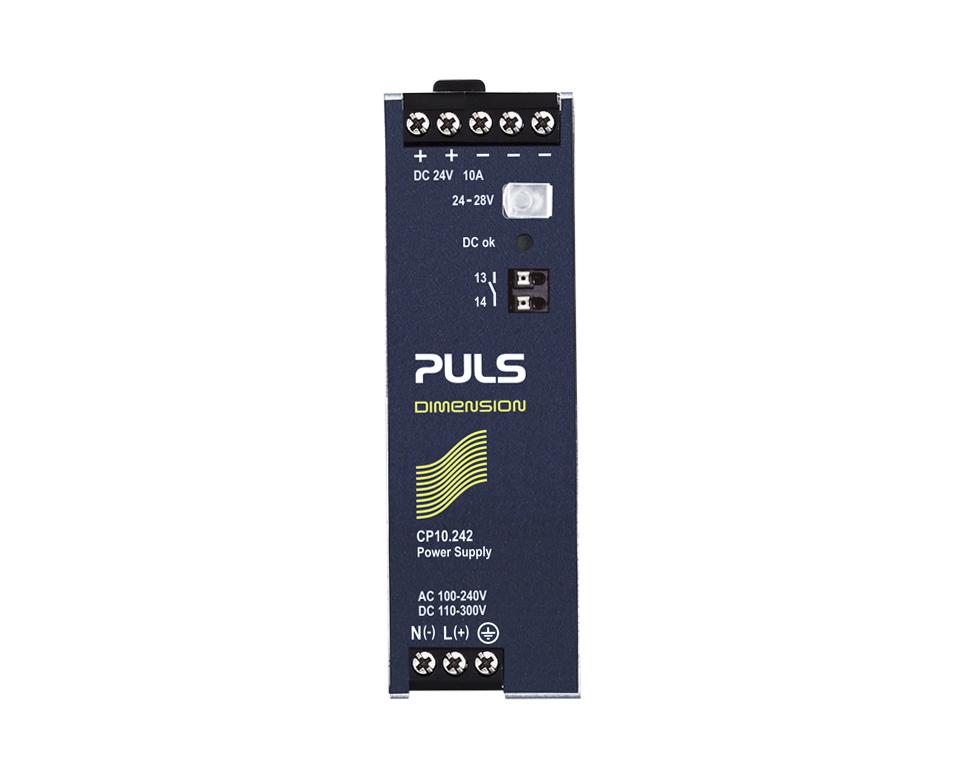

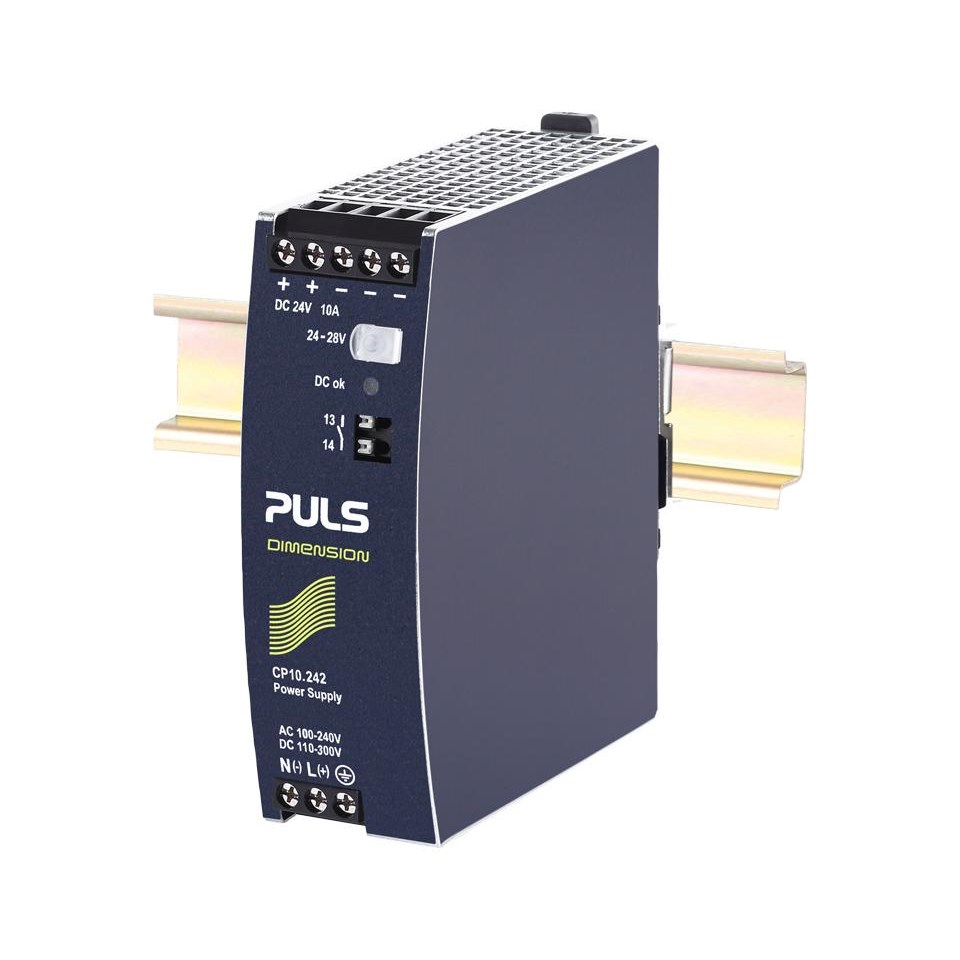

PULS DIN RAIL POWER SUPPLY 1 PHASE 24V DC CP10.242
