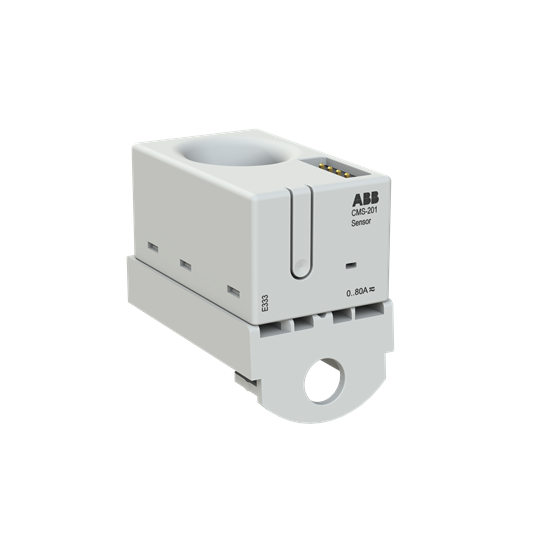

ABB CMS201S8 SOLID-CORE CURRENT SENSOR 25mm FOR S800 DEVICES, MEASURING RANGE 0.1-80A

The Solid-core current sensor is designed for S800 devices and features cage terminals. It has a current measuring range of 0.1-80A and a current accuracy class of 0.5, with a peak value of the distorted wave-form at 3. The sensor operates at a rated voltage of 690VAC/1500VDC, with a frequency of 50Hz and an operating temperature range of -25 to 70°C. The CMS sensors are capable of monitoring and measuring all types of current, including alternating (AC), direct (DC), or mixed (TRMS) currents. They can even measure harmonic components in the signal curve. The maximum diameter of the cable that can be used with this sensor is 15mm. The dimensions of the sensor are 38.5Hx26.5Wx43Dmm.
