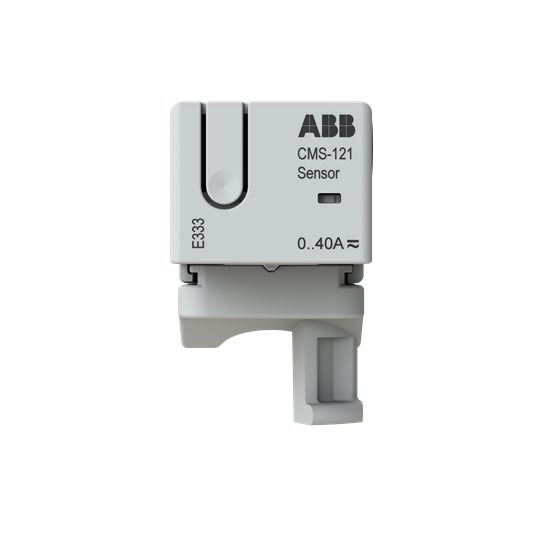

ABB CMS121CA OPEN-CORE CURRENT SENSOR 18mm FOR CABLE TIE MOUNTING, MEASURING RANGE 0.1-40A

The open-core current sensor is designed for cable tie mounting and has a current measuring range of 0.1-40A. It has a high level of accuracy with a class 1 rating and can handle distorted wave-forms with a peak value of 3. The sensor operates at a rated voltage of 690VAC/1500VDC, with a frequency of 50Hz. It can withstand temperatures ranging from -25 to 70°C. The CMS sensors are capable of monitoring and measuring all types of current, including alternating (AC), direct (DC), or mixed (TRMS) currents. Each sensor is equipped with its own microprocessor for signal processing. The maximum diameter of the cable that can be used with this sensor is 9.6mm. The dimensions of the sensor are 29Hx17.4Wx41Dmm.
