Product Code: CD5.243

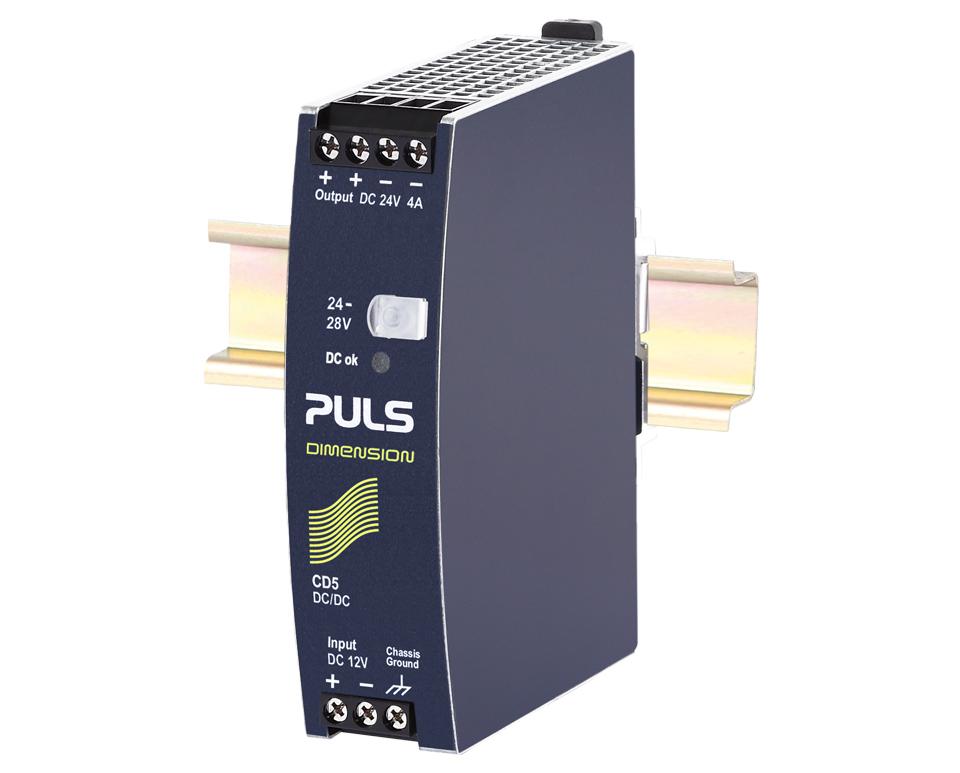

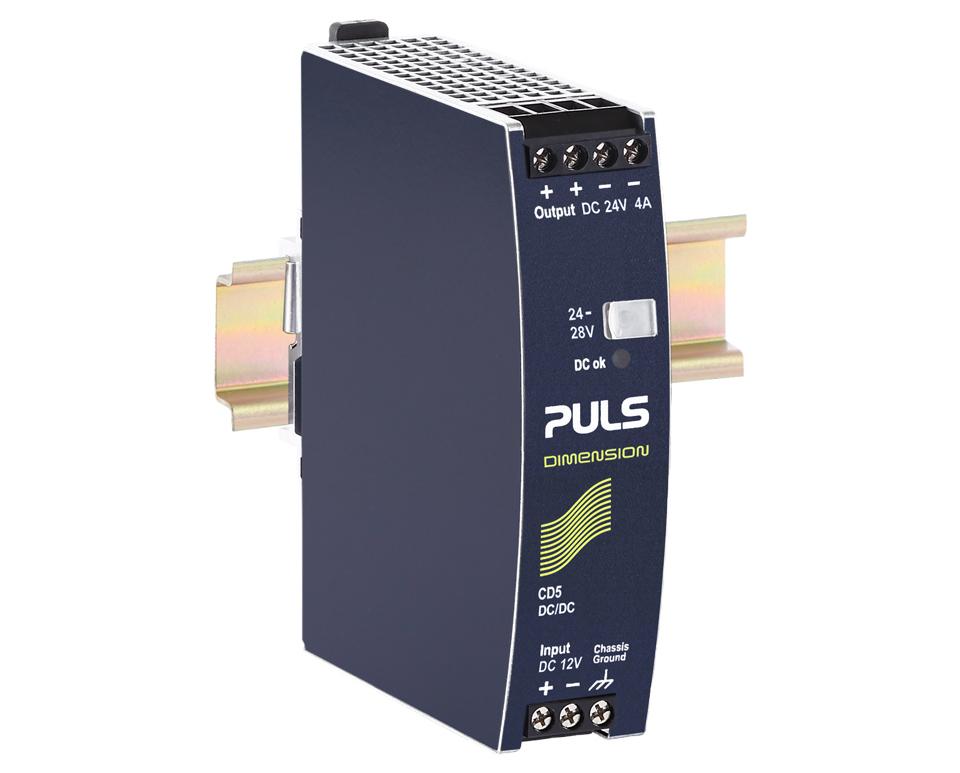

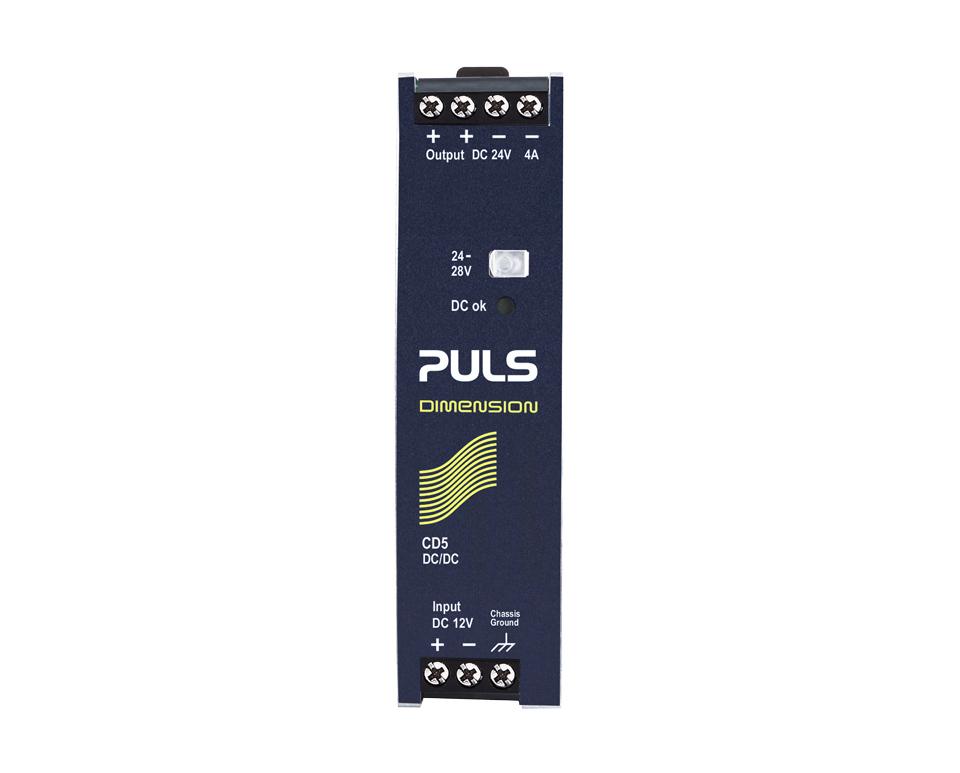

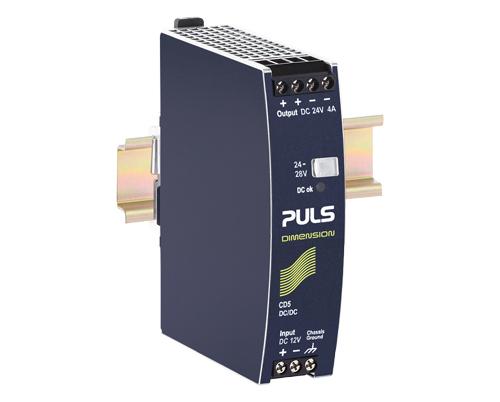

This product is a 12V DC-input power supply that provides an isolated 24V DC output. It has a high efficiency rating of up to 87.7% and a compact design with a width of only 32mm. With 20% output power reserves, it ensures reliable performance even in demanding applications. It operates at full power within a temperature range of -25°C to +60°C. The soft-start function minimizes inrush current surge, protecting the connected devices. Additionally, it features reverse input polarity protection for added safety.

Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	2.5 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS02
Efficiency	87.70%
Input Voltage Range DC (V)	12
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	12
Output Current Range (A)	4 - 3.4
Output Power (W)	96
Output Voltage (V)	24-28
Power Reserve Type	Power Boost
Power Reserves	20%
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85043121
Degree of Protection	IP20
Dimensions (mm)	32W x 124H x 102D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	13.5
Range	DIMENSION
Rated Current (A)	4
Series	C series
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	435

Industrial Power Supplies

PULS DC/DC CONVERTER 24VDC 4A CD5.243

Product Code: CD5.243
