Product Code: CD5.241-L1

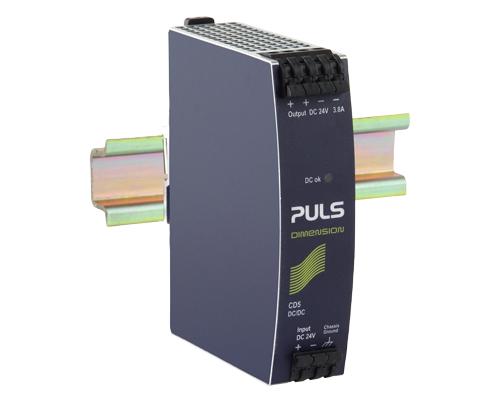

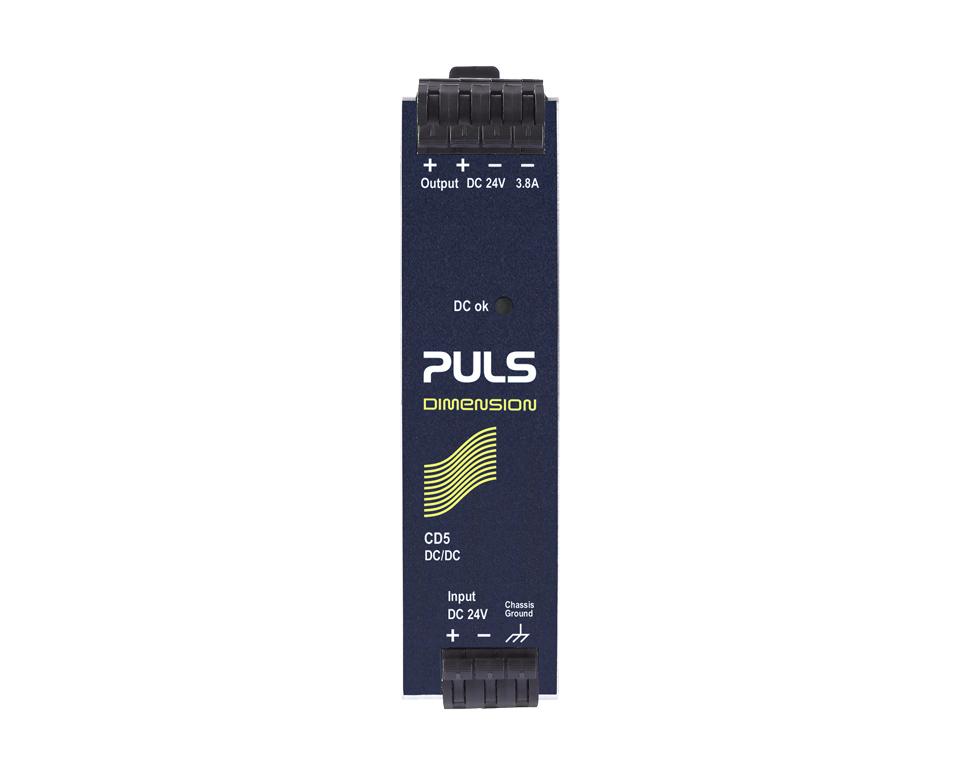

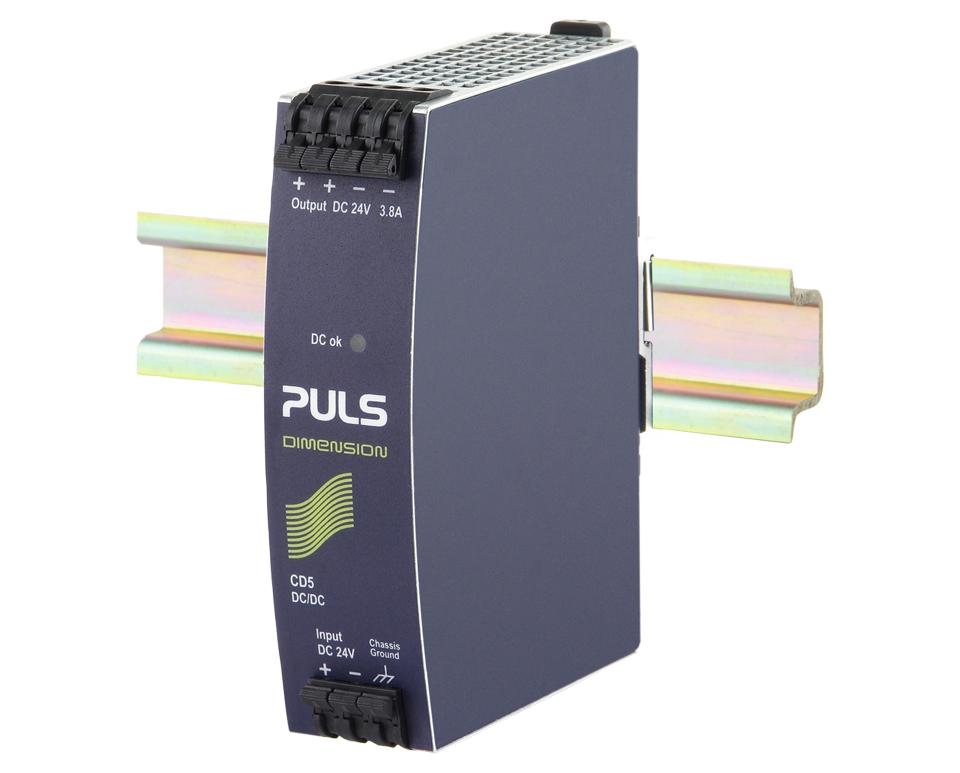

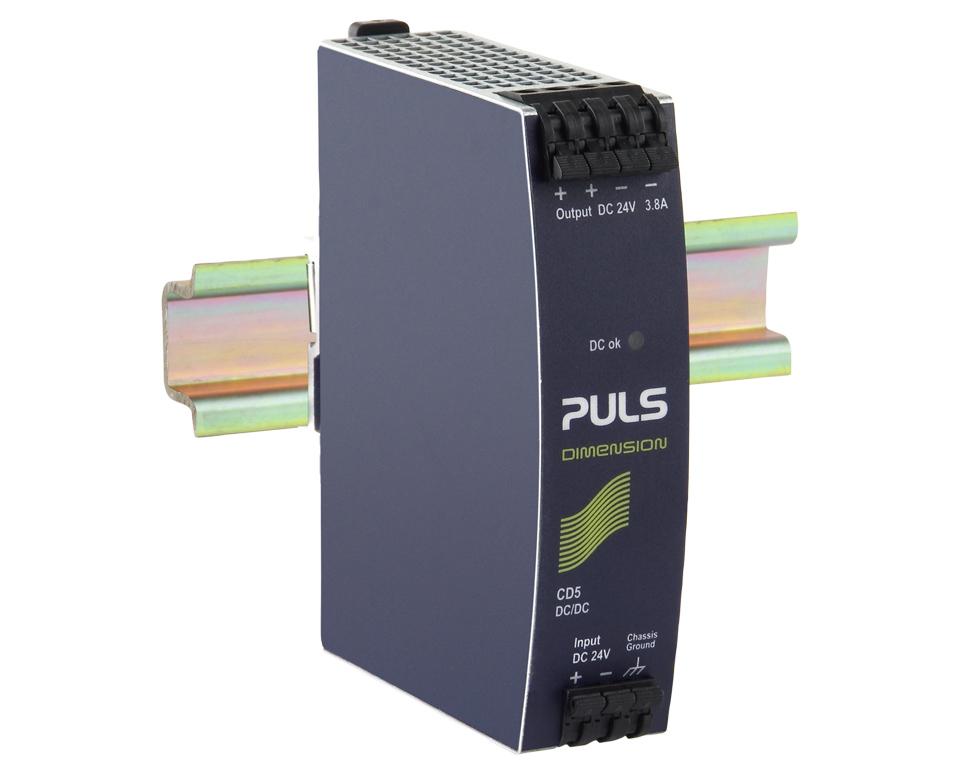

This product is a 24V DC-input power supply with an isolated 24V DC output. It has a NEC Class 2 output and features quick-connect spring-clamp connection terminals for easy installation. With an efficiency of up to 90.5%, it provides reliable power while maintaining a compact design with a width of only 32mm. It can operate at full power between -25°C and +60°C, making it suitable forVarious environments. The soft-start function ensures a smooth startup, while the minimal inrush current surge protects connected devices. Additionally, it has reverse input polarity protection for added safety.

Conformal Coating	No
Country of Origin	China / Czech Republic
Derating Temperature (°C)	> +60
E Classification	E-CS02
Efficiency	90.50%
Input Inrush Current Limitation	Active
Input Voltage Range DC (V)	24
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	24
Minimum Output Current (A)	3.8
Output Power (W)	92
Output Voltage (V)	24
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Spring clamps
Customs Tariff Number	85043121
Degree of Protection	IP20
Dimensions (mm)	32W x 124H x 102D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	9.7
Range	DIMENSION
Rated Current (A)	3.8
Series	C series
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, IEC 61010-1 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UL 61010-1 Canada, UL 61010-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	425
