Product Code: CD10.241

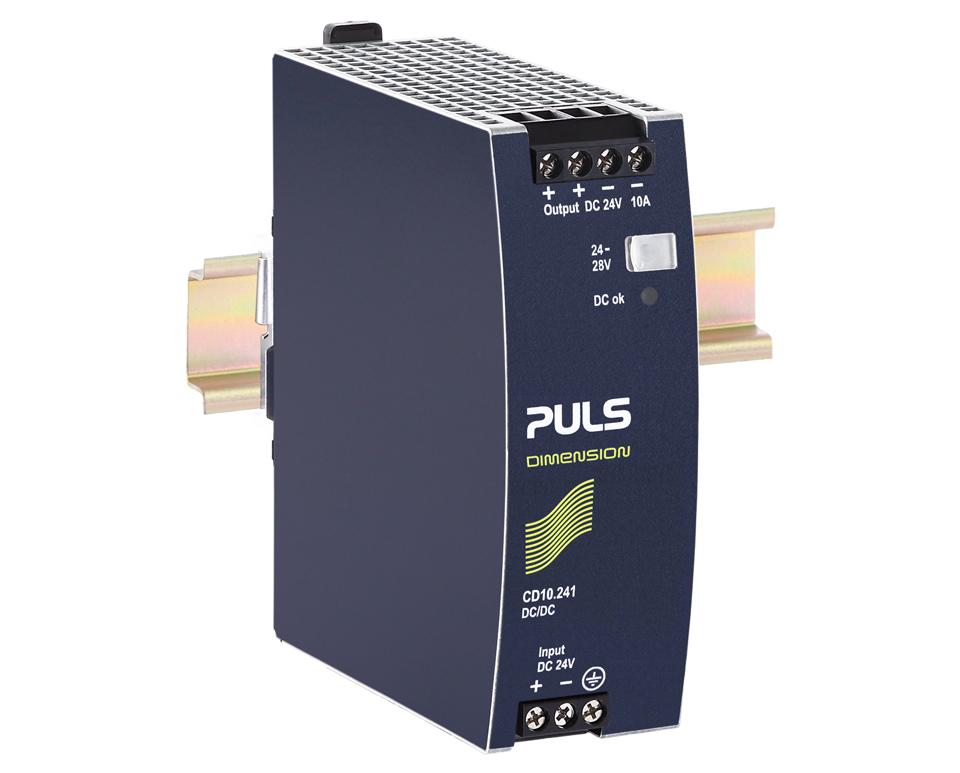

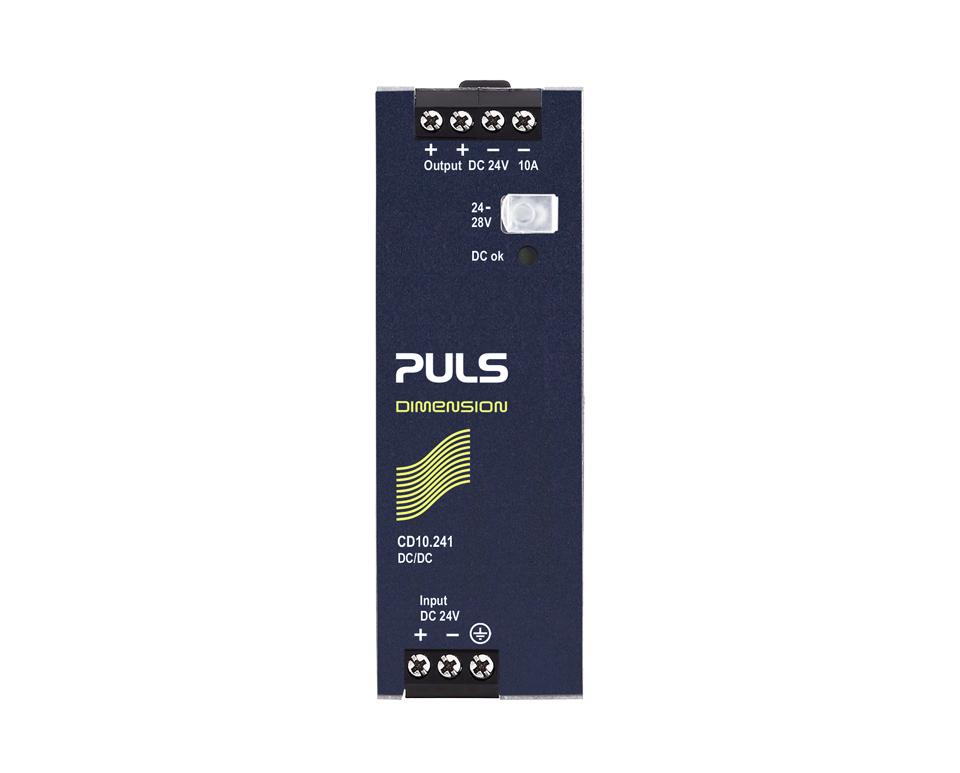

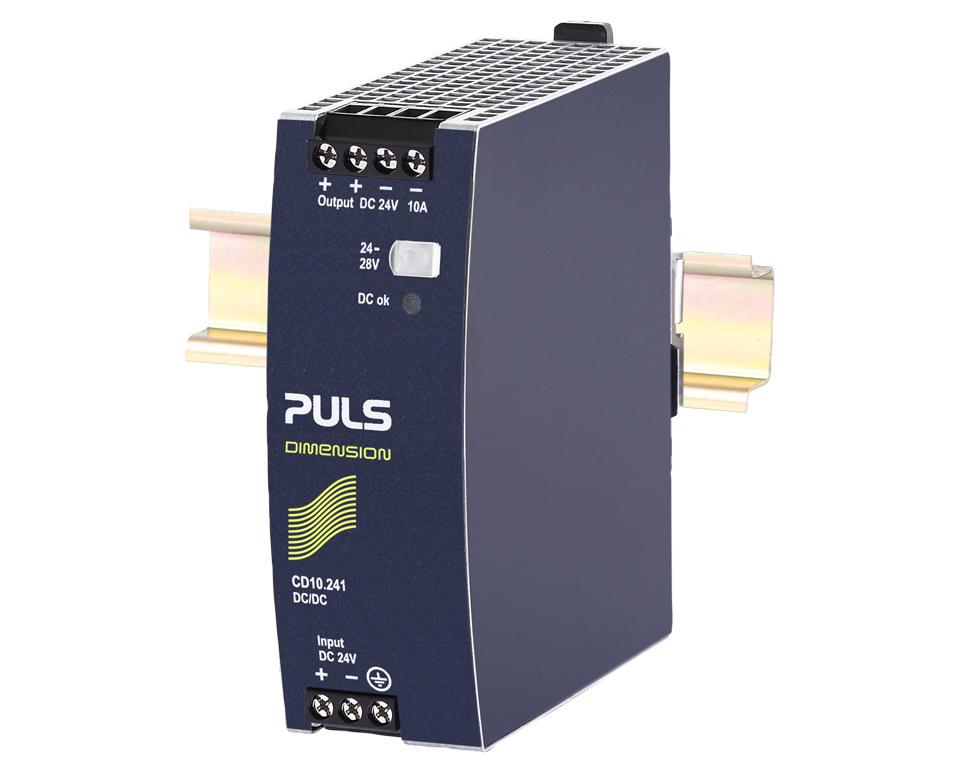

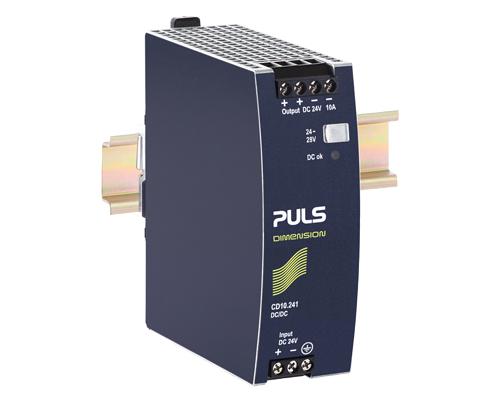

This product is a 24V DC-input power supply with an isolated 24V DC output. It has a high efficiency rating of 94.2% and a compact width of only 42mm. With 20% output power reserves, it provides reliable performance. It can operate at full power in temperatures ranging from -25°C to +60°C. The soft-start function ensures a smooth startup process, while the minimal inrush current surge protects the system from sudden power surges. Additionally, it features reverse input polarity protection for added safety.

Conformal Coating	No
Country of Origin	China / Czech Republic
E Classification	E-CS02
Efficiency	94.20%
Input Voltage Range DC (V)	24
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	24
Output Current Range (A)	10 - 8.6
Output Power (W)	240
Output Voltage (V)	24-28
Power Reserve Type	Power Boost
Power Reserves	20%
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85043121
Degree of Protection	IP20
Dimensions (mm)	42W x 124H x 117D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	14.8
Range	DIMENSION
Rated Current (A)	10
Series	C series
Standards and Approvals	EU Declaration of Conformity, IEC 60950 CB Scheme, IEC 61010-2-201 CB Scheme, Korea Certification, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	500
