Product Code: C13-110-301

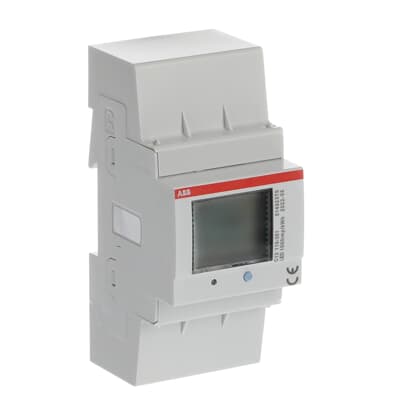

The C13-110 energy meter is a 40A direct connect device designed for three-phase systems operating at 230VAC. It features a pulse output for convenient monitoring. The meter has an accuracy of 1% for measuring active energy and can measure voltage in the range of 230-240V (N-L) and 230-400V (L-L). With an IP20 protection degree, it offers reliable performance. The backlit pixel-oriented LCD display ensures clear visibility. This meter belongs to the sub-group Steel functionality and supports active energy measurement, Class 1 accuracy, and pulse output/alarm. It is three modules wide and can be easily mounted on a DIN rail.

Brand	ABB
I/O Option	1 Digital Output
Meter Type	Digital
Number of Counter Positions	7
Pulse Output Rate	1000
Sub-Function	Steel
Accuracy	Active Energy Class ±1%
Connection Type	Direct
Degree of Protection	IP20
Enclosure Material	Polycarbonate
Maximum Current (A)	40
Mounting Type	DRA (DIN-rail adapter)
No. of Phases	3
No. of Poles	4
Operational Temperature Range (°C)	-25 to +70
Power Consumption (W)	0.721
Power Loss (W)	0.64
Rated Current (A)	5
Rated Frequency (Hz)	50 / 60
Rated Voltage (V)	3 X 220-240
Width in Number of Modular Spacings	3

Power & Multifunction Meters

ABB C13-110-301 kWh METER 40A, 3 PHASE DIRECT CONNECT WITH PULSE OUTPUT, STEEL FUNCTIONALITY

Product Code: C13-110-301
