Product Code: C11-110-301

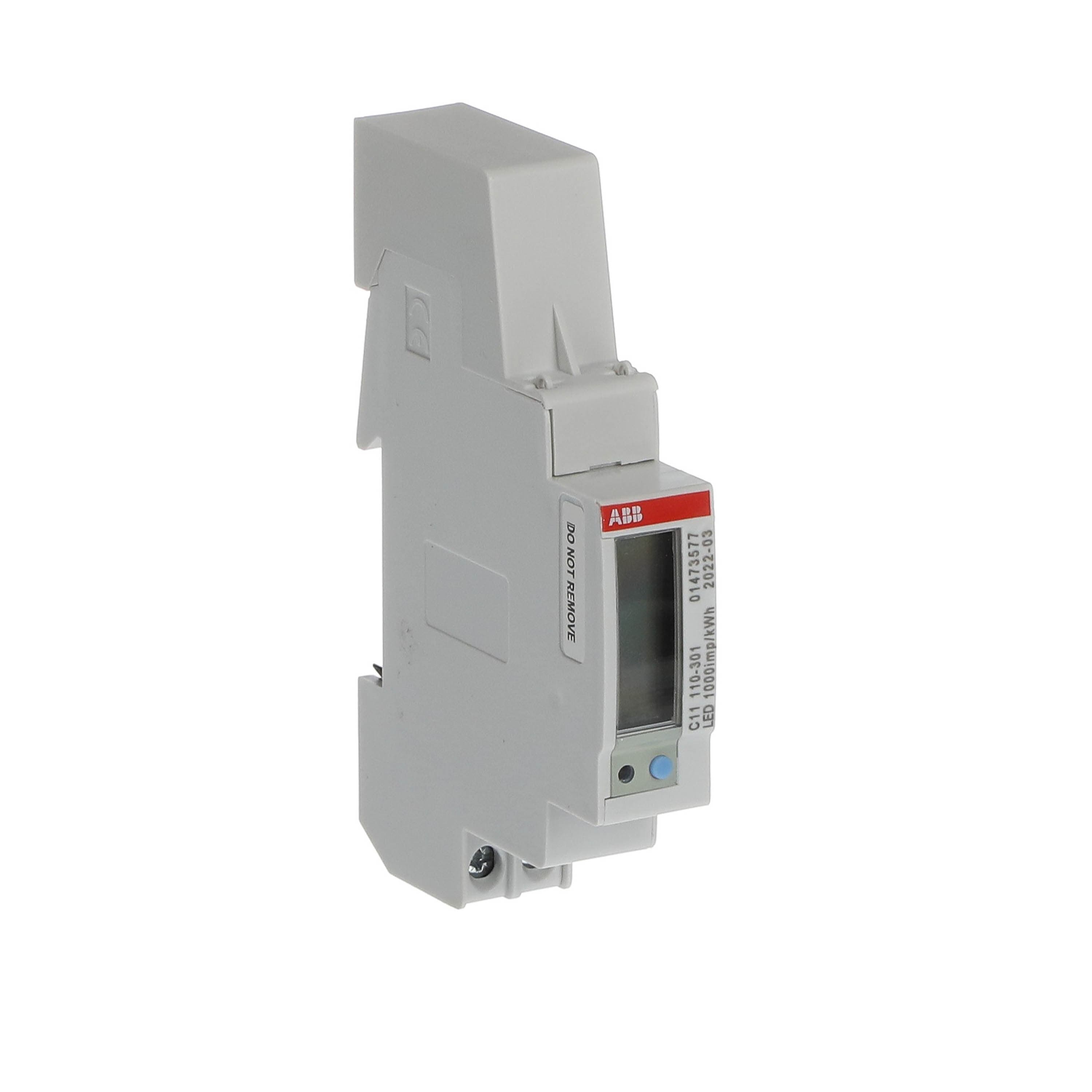

The C11-110 energy meter is a 40A direct connect device designed for single-phase systems operating at 230VAC. It features a pulse output for convenient monitoring. The meter has an accuracy of 1% for measuring active energy and can measure within the range of 230-240V between the neutral and live wires. With an IP20 protection degree, it offers adequate protection against solid objects. The backlit pixel-oriented LCD display ensures clear visibility in various lighting conditions. This meter belongs to the sub-group Steel functionality, offering active energy measurement, Class 1 accuracy, and pulse output/alarm capabilities. It is compact, occupying only one module width, and can be easily mounted on a DIN rail.

Brand	ABB
I/O Option	1 Digital Output
Meter Type	Digital
Number of Counter Positions	6
Pulse Output Rate	1000
Sub-Function	Steel
Accuracy	Active Energy Class ±0.5%
Connection Type	Direct
Degree of Protection	IP20
Enclosure Material	Polycarbonate
Maximum Current (A)	40
Mounting Type	DRA (DIN-rail adapter)
No. of Phases	1
No. of Poles	1
Operational Temperature Range (°C)	-25 to +70
Power Consumption (W)	0.22
Power Loss (W)	0.22
Rated Current (A)	5
Rated Frequency (Hz)	50 / 60
Rated Voltage (V)	230
Width in Number of Modular Spacings	1
