Brand	ABB
Accuracy Class	Active Energy Class
Meter Type	Transformer connected
Net Weight (g)	270
No. of Digital Inputs	2
No. of Digital Outputs	2
Number of Counter Positions	7
Sub-Function	Silver
Accuracy	±1%
Communication Interface	IR port
Current Rating (A)	6
Degree of Protection	IP20
Dimensions (mm)	70 X 26.5 X 65
Display Screen Type	Digital
Enclosure Material	Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover.
Function	Electricity meter
Mounting Type	DIN-Rail
No. of Phases	Three-phase
No. of Poles	3P or 4P
Power Consumption (W)	0.721
Rated Current (A)	1
Rated Frequency (Hz)	50 / 60
Rated Voltage (V)	3 x 220-240

Power & Multifunction Meters

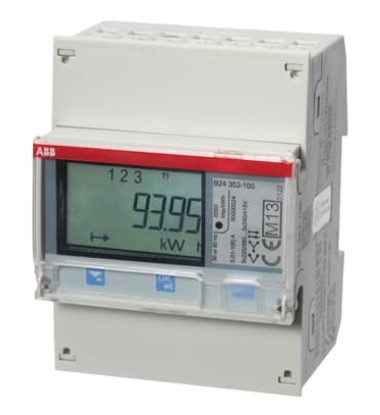

ABB B24 ADVANCED COMPACT DIN-RAIL METER 'SILVER', M-BUS THREE-PHASE, 6A, 3P / 4P, IP20 B24-311-300
