Product Code: B23-113-100

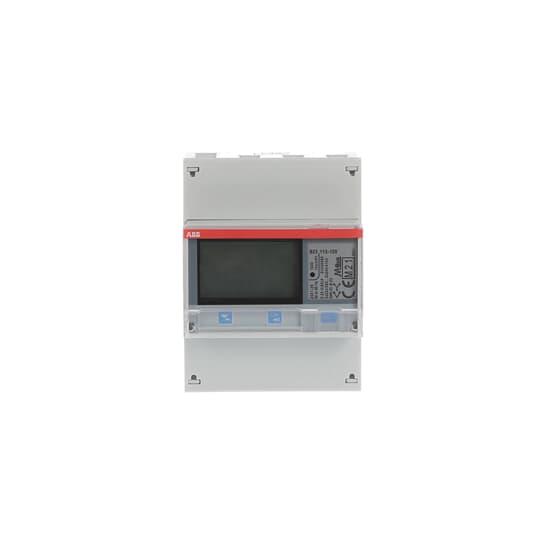

The B23-113 energy meter is a 65A direct connect device designed for three-phase systems operating at 230VAC. It features pulse output and M-Bus TP communication capabilities. The meter has an accuracy of active energy class 1%, allowing for precise measurement. It can measure a range of N-L voltage from 220-240V and L-L voltage from 380-415V. With a protection degree of IP20, it offers reliable performance in various environments. The backlit pixel-oriented LCD display ensures clear visibility of readings. This energy meter belongs to the sub-group Steel functionality, offering active energy measurement, class 1 accuracy, and pulse output/alarm features. It is four modules wide and can be easily mounted on a DIN rail.

I/O Option	1 Digital Output
Meter Type	Digital
Number of Counter Positions	7
Pulse Output Rate	1-999999
Sub-Function	Steel
Brand	ABB
Accuracy	Active Energy Class B MID (±1%)
Communication	Modbus
Connection Type	Direct
Degree of Protection	IP20
Enclosure Material	Polycarbonate
Maximum Current (A)	65
Mounting Type	DIN Rail
No. of Phases	3
No. of Poles	4
Operational Temperature Range (°C)	-40 to +70
Power Consumption (W)	0.721
Rated Current (A)	5
Rated Frequency (Hz)	50 / 60
Rated Voltage (V)	3 X 220-240
Standards and Approvals	EN 50470-1
Width in Number of Modular Spacings	4

Power & Multifunction Meters

ABB B23-113-100 kWh METER 65A, 3 PHASE DIRECT CONNECT WITH PULSE OUTPUT & M-BUS TP, STEEL FUNCTIONALITY

Product Code: B23-113-100
