Product Code: B23-112-100

The B23-112 energy meter is a 65A direct connect device designed for three-phase systems operating at 230VAC. It features pulse output and Modbus RTU communication capabilities. The meter has an accuracy of active energy class 1%, ensuring precise measurements. It can measure voltage in the range of 220-240V (N-L) and 380-415V (L-L). With a protection degree of IP20, it offers reliable performance in various environments. The backlit pixel-oriented LCD display provides clear visibility of readings. This energy meter belongs to the sub-group Steel functionality, offering active energy measurement, class 1 accuracy, and pulse output/alarm features. It is four modules wide and can be easily mounted on a DIN rail.

I/O Option	2 Digital I/O
Meter Type	Digital
Pulse Output Rate	1-999999
Sub-Function	Silver
Brand	ABB
Accuracy	Active Energy Class B MID (±1%)
Communication	Modbus
Connection Type	Direct
Degree of Protection	IP20
Enclosure Material	Polycarbonate
Maximum Current (A)	65
Mounting Type	DIN Rail
No. of Phases	1
No. of Poles	1
Operational Temperature Range (°C)	-40 to +70
Power Consumption (W)	0.414
Rated Current (A)	5
Rated Frequency (Hz)	50 / 60
Rated Voltage (V)	220-240
Standards and Approvals	EN 50470-1
Width in Number of Modular Spacings	2

Power & Multifunction Meters

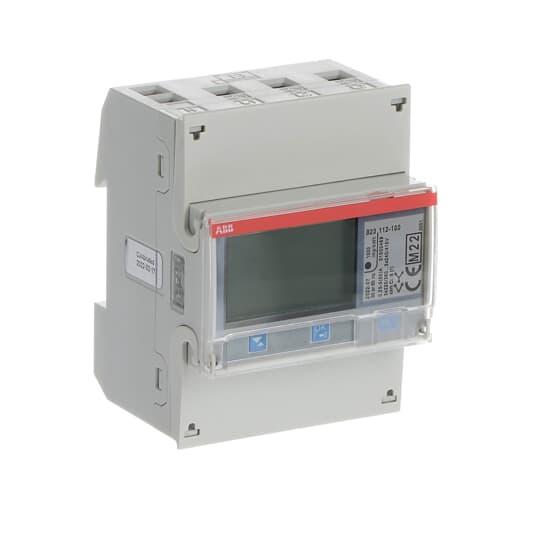

ABB B23-112-100 kWh METER 65A, 3 PHASE DIRECT CONNECT WITH PULSE OUTPUT & MODBUS RTU, STEEL FUNCTIONALITY

Product Code: B23-112-100
