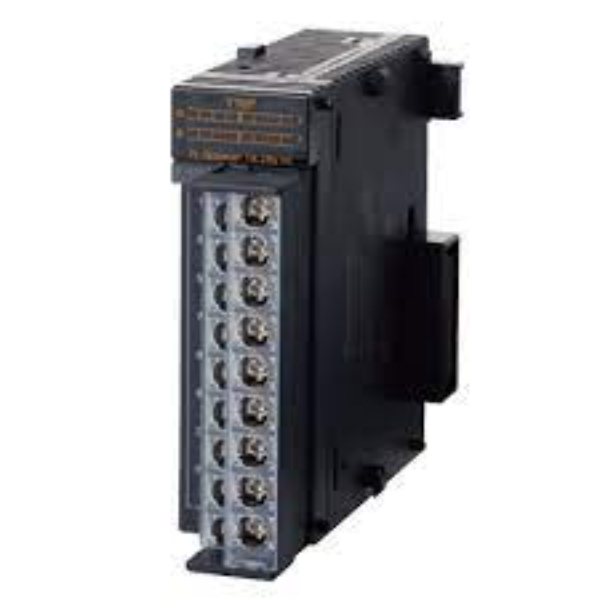

PANASONIC DIGITAL OUTPUT UNIT 16 POINTS AFP7Y16P

Product Code: AFP7Y16P

The FPZ series is a digital output unit with 16 points of transistor output. The output is sourced from PNP transistors. The load current for each point is 1.0 A, with a total load current of 5 A per common connection. The unit supports a total of 16 points per common connection. The connection method used is a terminal block.

Technical Specifications

Current Consumption (mA) 35
No. of Points 16
Brand PANASONIC
Connection Type Terminal Block
Dimensions (mm) 90H x 28W x 103D
Insulation Resistance (MO) 100 at 500VDC
Operational Temperature Range (°C) 0 to +55
Rated Operational Voltage DC (V) 5 - 24
Series FP7
