Product Code: AFP0HC32ET

The Control Unit with Ethernet is an NPN type device that operates on 24 V DC power. It has the capability to control up to 32 I/O points, with 16 inputs and 16 outputs. When expanded, it can control a maximum of 384 points. The input operating voltage range is between 20.4 and 28.8 V, with a consumption current of 170 mA or less. This unit also features a built-in SD memory card function for added convenience. Additionally, it offers program upload protection and program protection functions for enhanced security. The periodical interrupt interval can be set from as low as 0.1 ms to as high as 30 seconds.

Current Consumption (mA)	170
No. of Inputs	16
No. of Outputs	16
No. of Points	32
Brand	PANASONIC
Dimensions (mm)	101H x 42.4W x 82D
Insulation Resistance (MO)	100 at 500VDC
Operational Temperature Range (°C)	0 to +55
Rated Voltage DC (V)	24
Series	FP0H

Programmable Logic Controllers & I/O

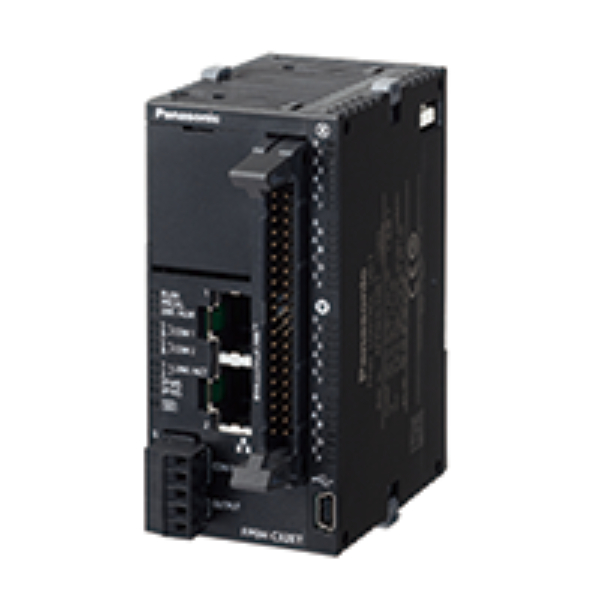

PANASONIC CONTROL UNIT WITH ETHERNET NPN TYPE AFP0HC32ET

Product Code: AFP0HC32ET

Technical Specifications
