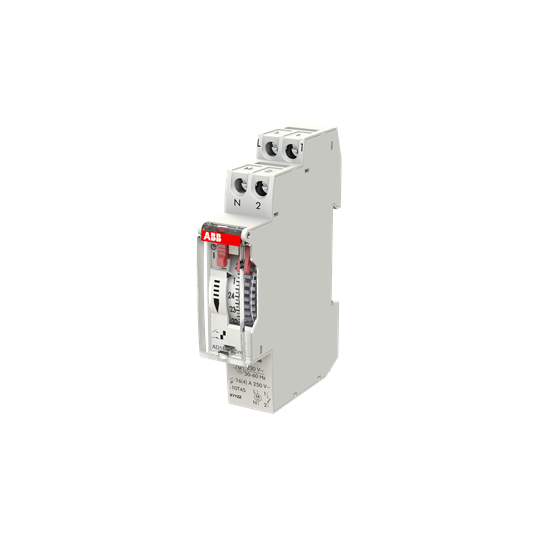

ABB ANALOG TIME SWITCH 24HR 1 MODULE AD1NO-15M

Product Code: AD1NO-15M

The Analog Time Switch is a modular DIN Rail mount device designed for daily functioning. It does not require battery back-up. The minimum time of functioning is 15 minutes, and it features a 1N/O contact with a maximum current rating of 16A. The power consumption is less than or equal to 0.5W, and it operates on a supply voltage of 230VAC. The switch has 96 pins and a width of 17.5mm, making it suitable for use in compact spaces.

Technical Specifications

Brand ABB
Accuracy Operating: ± 1 sec/24h, Switching: ± 5 min
Battery Backup No
Channels 1
Contacts 1NO
Degree of Protection IP20
Function Daily
Maximum Switching Current (A) 16(4)
Maximum Switching Voltage AC (V) 250
Minimum Switching Time (s) 900
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 1
No. of Switching Intervals 96 pins
Operational Temperature Range (°C) -10 to +45
Pollution Degree 2
Power Consumption (W) ≤0.5
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Rated Supply Voltage AC/DC (V) 230V AC
Standards and Approvals EN 60730-2-7
Storage Temperature (°C) -20 to +60
Terminal Type Captive Screw
Universal Supply Voltage AC (V) 230
