Product Code: AD1CO-R-15m

The Analog Time Switch is a modular DIN Rail mount device with battery backup. It is designed for daily functioning and has a minimum time of functioning of 15 minutes. With a power reserve of 150 hours, it ensures reliable operation even during power outages. The switch features a 1N/O contact with a maximum current rating of 16A and a power consumption of 0.5W. It operates on a supply voltage of 230VAC and has 96 pins. The switch is compact, with a width of 2.5 modules or 17.5mm.

Brand	ABB
Accuracy	Operating: ± 1 sec/24h, Switching: ± 5 min
Battery Backup	150 hrs
Channels	1
Contacts	1CO
Degree of Protection	IP20
Function	Daily
Maximum Switching Current (A)	16(4)
Maximum Switching Voltage AC (V)	250
Minimum Switching Time (s)	900
Mounting Type	DIN Rail
No. of Modules - Width 17.5 mm	1
No. of Switching Intervals	96 pins
Operational Temperature Range (°C)	-10 to +50
Pollution Degree	2
Power Consumption (W)	0.5
Rated Current (A)	16
Rated Frequency (Hz)	50/60
Rated Supply Voltage AC/DC (V)	230V AC
Standards and Approvals	EN 60730-2-7
Storage Temperature (°C)	-20 to +70
Terminal Type	Captive Screw
Universal Supply Voltage AC (V)	230

Electrical Time Switches, Timers & Control Relays

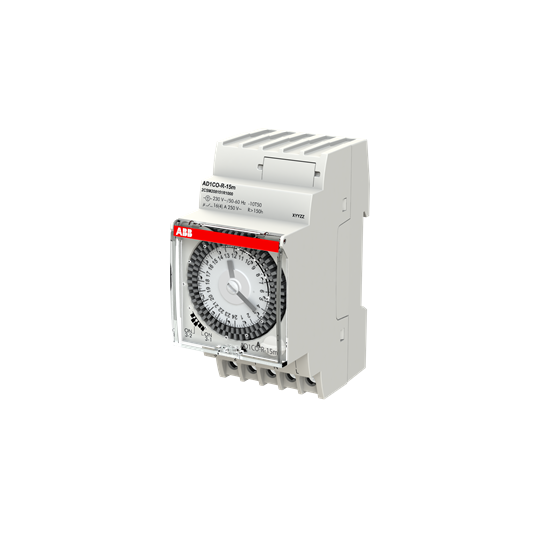

ABB ANALOG TIME SWITCH 24HR 2.5 MODULES WITH RESERVE AD1CO-R-15m
