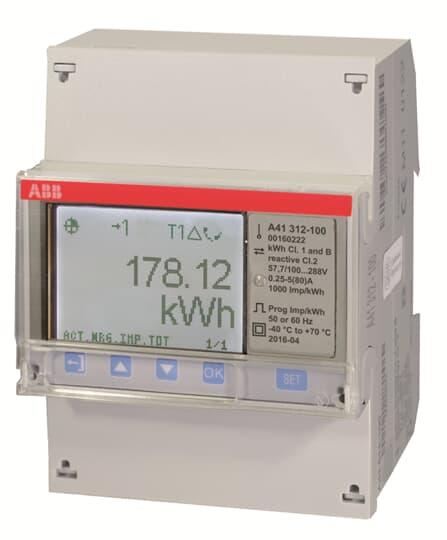

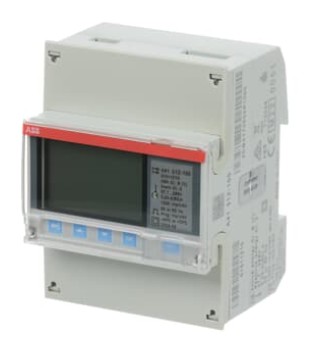

ABB A41-312-100 kWh METER 80A, 1 PHASE DIRECT CONNECT WITH 2 OUTPUT, 2 INPUT & MODBUS RTU, SILVER FUNCTIONALITY

The A41-312 energy meter is a direct connect meter designed for single-phase systems with a maximum current of 80A and voltage rating of 230VAC. It features 2 output and 2 input ports, as well as Modbus RTU communication capability. This energy meter offers high accuracy measurements, with active energy accuracy rated at class 1% and reactive energy accuracy rated at class 2%. The range of measurement for the N-L voltage is between 57.7V and 288V. With an IP20 protection degree, this meter provides reliable protection against solid objects. It also features a backlit pixel-oriented LCD display for easy reading in various lighting conditions. The A41-312 energy meter belongs to the Silver functionality sub-group, offering a range of useful features including measurement of active, reactive, and apparent energy. It supports import/export of energy and has resettable energy registers. The meter can be configured to operate in either Class 0.5 or Class 1 mode. Other features include support for tariffs, fixed I/O connections, active energy measurement, and pulse output/alarm functionality. This energy meter is designed to be mounted on a DIN rail and occupies four modules of space.
