Product Code: 943 940-999-010

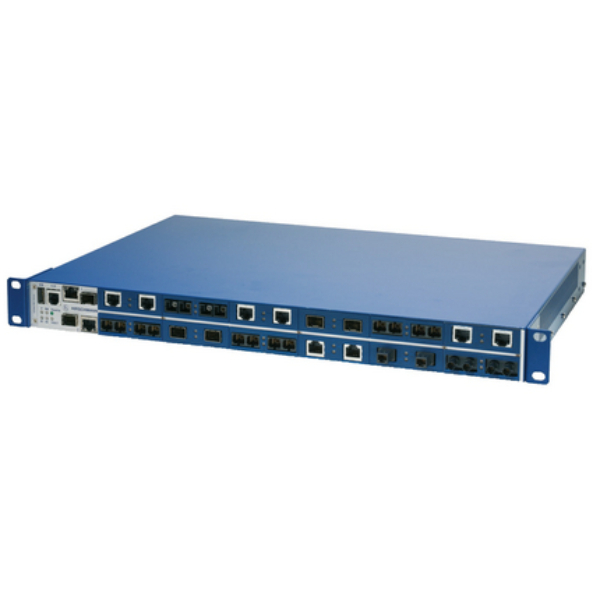

Discover the Hirschmann MAR1030, a robust managed rackmount switch designed for challenging environments. This Layer 2 professional-grade switch features versatile connectivity with 2 combo ports that support either 10/100/1000 TX or Gigabit Ethernet SFP, alongside 2 RJ45 twisted-pair ports and an array of fiber options including 4 multimode SC and 18 multimode ST connectors. Engineered to withstand extreme temperatures ranging from -40°C to +85°C, it ensures reliability with dual power supplies accepting 24/36/48 V DC input. The MAR1030 meets rigorous industry standards with approvals like cUL508, cUL1604 Class 1 Div2, and more, making it ideal for industrial applications requiring certified network solutions.

Maximum Temperature (°C)	85
Minimum Temperature (°C)	-40
No. of 100Mb Ports	24
No. of 1GB Ports	2
No. of Ethernet Ports	2
No. of Fiber Ports	24
Port Quantity and Type	2 x Ports Combo 10/100/1000TX GE, 2 x Twisted Pair 10/100 RJ45 FE, 4 x Multimode 100 SC FE
Rated Maximum Operational Voltage DC (V)	48
Rated Minimum Operational Voltage DC (V)	24
Brand	HIRSCHMANN
Degree of Protection	IP30
Mounting Type	19" Control Cabinet
Operational Temperature Range (°C)	-40 to +85
Rated Operational Voltage DC (V)	24 - 48
Series	MAR1030
Standards and Approvals	IEC 61850-3
Switch Type	Gigabit Ethernet Uplink
