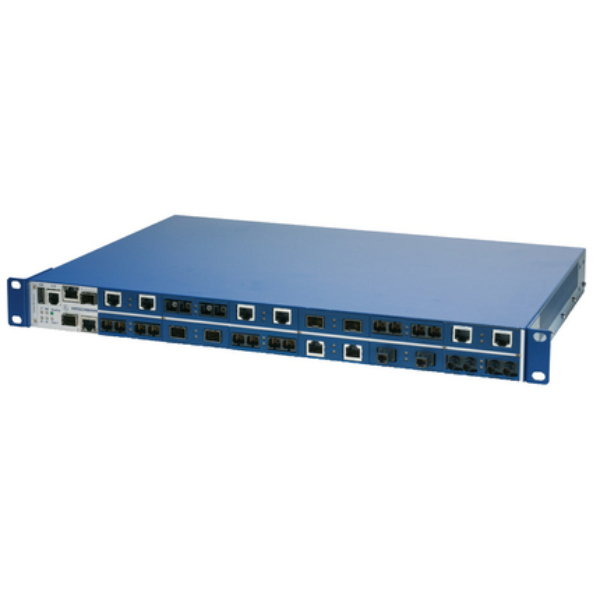

HIRSCHMANN MANAGED ETHERNET RACKMOUNT SWITCH 943 940-999-009

Product Code: 943 940-999-009

Explore the Hirschmann MAR1030, a robust Managed Rackmount Switch designed for challenging environments. This switch features 4 GE SFP ports and 24 RJ45 twisted pair connectors supporting 10/100 Mbit/s speeds, ensuring high-performance connectivity. Engineered to withstand extreme temperatures ranging from -40°C to +85°C, it's ideal for industrial applications. Dual power supply inputs offer flexibility with support for both DC (110/250V) and AC (110/230V) via plug-in connectors. As a Layer 2 Professional switch, it meets rigorous standards with approvals including cUL508, cUL1604 Class 1 Div2, Germanischer Lloyd, IEC 61850-3, IEEE 1613, and EN 50121. Trust in Hirschmann's network solutions expertise for reliable and secure operations in your critical infrastructure.

Technical Specifications

Maximum Temperature (°C) 85
Minimum Temperature (°C) -40
No. of 100Mb Ports 24
No. of 1GB Ports 4
No. of Ethernet Ports 24
No. of Fiber Ports 4
Port Quantity and Type 4 x SFP GE, 24 x Twisted Pair 10/100 Mbit/s RJ45 FE
Rated Maximum Operational Voltage AC (V) 230
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 110
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type 19" Control Cabinet
Operational Temperature Range (°C) -40 to +85
Rated Operational Voltage AC (V) 110 - 230
Rated Operational Voltage DC (V) 110 - 250
Series MAR1030
Standards and Approvals IEC 61850-3
Switch Type Gigabit Ethernet Uplink
