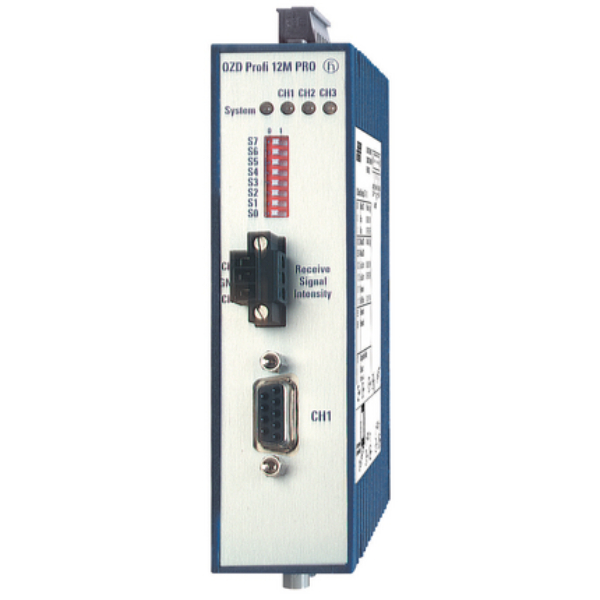

HIRSCHMANN INTERFACE CONVERTER ELECTRICAL/OPTICAL FOR PROFIBUS-FIELD BUS NETWORKS; REPEATER FUNCTION; FOR QUARTZ GLASS FO; LONG-HAUL VERSION; 943906221

Product Code: 943 906-221

Hirschmann's electrical/optical interface converter is designed for PROFIBUS-field bus networks, featuring a repeater function suitable for quartz glass fiber optics in long-haul applications. Specifications include: 1 x optical (2 sockets BFOC 2.5 (STR)) and 1 x electrical (Sub-D 9-pin, female, pin assignment according to EN 50170 part 1).

Technical Specifications

Current Consumption (mA) 200 (Max)
Fiber Cable Length (km) 15 (Single mode fiber 9/125 µm), 10 (Multimode fiber 50/125 µm),10 (Multimode fiber 62.5/125 µm)
Fiber Type Single mode fiber (9/125 µm), Multimode fiber (50/125 µm), Multimode fiber (62.5/125 µm)
Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
Operating Voltage DC (V) 18-32 (typ. 24)
Operating Voltage Range 18 - 32V DC, Type 24V DC
Relative Humidity 10-95 %
Brand HIRSCHMANN
Degree of Protection IP20
Dimensions (mm) 35W x 163H x 119D
Input Voltage AC/DC (V) -7 to +12
Material Plastic
Mounting Type DIN Rail
No. of Pins 9
No. of Ports 1 x optical: 2 sockets BFOC 2.5 (STR), 1 x electrical: Sub-D 9-pin (female)
Operational Temperature Range (°C) 0 - 60
Output Voltage DC (V) 5 (+5%, -10%)
Power Consumption (W) 4.8
Series OZD
Standards EU Conformity, AUS Conformity Australia
Standards and Approvals ATEX/IECeX
Storage Temperature Range (°C) -40 - 70
Weight (g) 200
Weight (kg) 0.2
