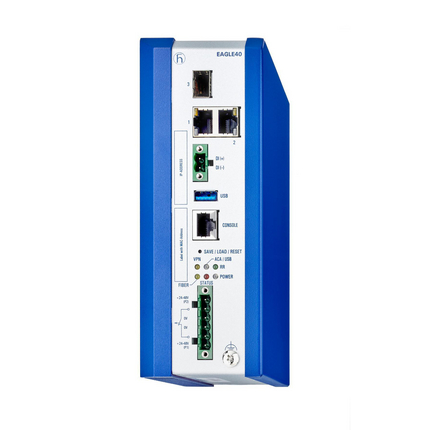

HIRSCHMANN NEXT-GENERATION FIREWALL WITH STATEFUL PACKET INSPECTION 3X GE TX, 24-48V DC, -40-70°C, UL APPROVAL, WITH INDUSTRIAL PROTECTION SUITE 942300005

Product Code: 942 300-005

Hirschmann's product features 3x Gigabit Ethernet (GE) TX ports, operates on a 24-48 V DC power supply, and is designed to withstand extreme temperatures ranging from -40 to 70 degrees Celsius. It comes with UL approval and is equipped with an Industrial Protection Suite, ensuring robust performance in demanding environments.

Technical Specifications

Operating Voltage 2 x 24/36/48V DC
Port Quantity and Type 3 x TX
Power Output in BTU (IT)/h 51
Relative Humidity 10-95 %
Brand HIRSCHMANN
Approvals CE, FCC, EN 61131
Degree of Protection IP20
Dimensions (mm) 70W x 187.2H x 135.8D
Housing Material Rugged high-strength sheet
Mounting Type Din Rail Mount
Operational Temperature Range (°C) -40 to +70
Power Consumption (W) Max. 15
Storage Temperature Range (°C) -40 to +85
Weight (kg) 1.96
