Product Code: 942 103-999-011

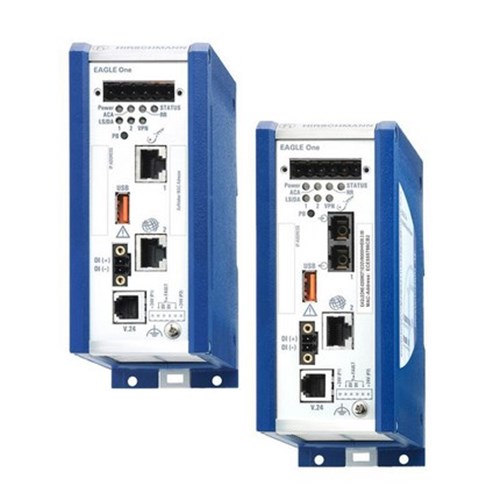

Secure your industrial network with the Hirschmann EAGLEONE, a robust firewall and VPN router system designed for reliability in challenging environments. This device features two Ethernet ports capable of 10/100 Mbit/s speeds, including one twisted pair RJ45 port and one multimode SC fiber optic port, ensuring versatile connectivity options. Engineered to operate within a temperature range of 0°C to +60°C and compatible with both DC (9.6 to 60 V) and AC (18 to 30 V) power supplies, it meets various industry standards such as CE, FCC, EN 61131, EN 60950, and IEC 61850. As part of Hirschmann's Network Solutions in the Security Devices category, the EAGLEONE series stands out for its commitment to safeguarding critical data infrastructure.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
No. of 100Mb Ports	2
No. of Ethernet Ports	2
Nominal Power (W)	6
Rated Maximum Operational Voltage AC (V)	30
Rated Maximum Operational Voltage DC (V)	60
Rated Minimum Operational Voltage AC (V)	18
Rated Minimum Operational Voltage DC (V)	9.6
Brand	HIRSCHMANN
Configuration	Hirschmann Standard Configuration
Degree of Protection	IP20
Mounting Type	DIN Rail
No. of Ports	2xFast Ethernet Ports (10/100 Mbit/s), 1xMultimode SC, 1xTwisted Pair RJ45
Operational Temperature Range (°C)	+0 to +60
Rated Operational Voltage AC (V)	18-30
Rated Operational Voltage DC (V)	9.6-60
Series	EAGLEONE
Standards and Approvals	CE, FCC, EN 61131, EN 60950, IEC 61850, IEEE 1613

Security Devices

HIRSCHMANN EAGLEONE FIREWALL & SECURITY ROUTER 942 103-999-011

Product Code: 942 103-999-011

Technical Specifications
