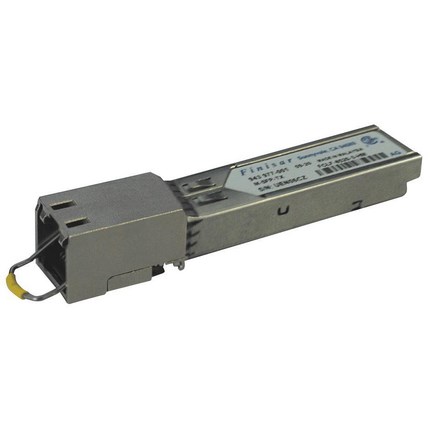

HIRSCHMANN SFP TX FAST ETHERNET TRANSCEIVER, 100 MBIT/S FULL DUPLEX AUTO NEG. FIXED, CABLE CROSSING NOT SUPPORTED 942098001

Product Code: 942 098-001

Hirschmann's SFP TX Fast Ethernet Transceiver is designed for 100 Mbit/s full duplex operations with fixed auto-negotiation, not supporting cable crossing. It features 1 x 100 Mbit/s port with an RJ45 socket.

Technical Specifications

Electromagnetic Capability 10 V/m (80-1000 MHz)
Electrostatic Discharge (kV) 6 kV Contact Discharge, 8 kV Air Discharge
Maximum Temperature (°C) 60
Mean Time Between Failure (MTBF) 1703 Years
Minimum Temperature (°C) 0
No. of Fiber Ports 1
Relative Humidity 5-95 %
Resistance to Vibrations 1 mm, 2 Hz-13.2 Hz, 90 min. 0.7 g, 13.2 Hz-100 Hz, 90 min. 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min. 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
Software Diagnostics Optical input and output power, transceiver temperature
Transition Type 2 kV power line, 1 kV data line
Brand HIRSCHMANN
Cable Length (m) 0 - 100
Connector Type RJ45
Degree of Protection IP20
Dimensions (mm) 14W x 14H x 70D
Mounting Type SFP Slot
Operational Temperature Range (°C) 0 - 60
Power Consumption (W) 1
Series SFP-FAST
Standards and Approvals EN60950/ EN55022 Class A/ FCC 47CFR Part 15, Class A/ IEC 60068-2-27/IEC 60068-2-6/EN 61000-4-2/3/4/5/6
Storage Temperature Range (°C) -40 - 85
Surge Voltage (kV) Power Line: 2 kV (Line/Earth), 1 kV (Line/Line), 1 kV Data Line
Weight (g) 45
