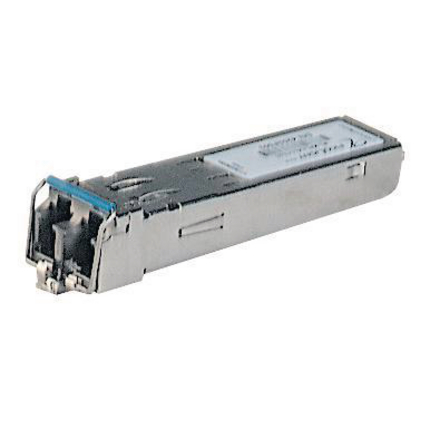

HIRSCHMANN SFP FIBER OPTIC GIGABIT ETHERNET TRANSCEIVER SM 942023001

Product Code: 942 023-001

The Hirschmann SFP Fiber Optic Gigabit Ethernet Transceiver is designed for single-mode applications, offering a high-speed connection of 1 x 1000 Mbit/s through an LC connector.

Technical Specifications

Electromagnetic Capability 10 V/m (80-1000 MHz)
Electrostatic Discharge (kV) 6 kV Contact Discharge, 8 kV Air Discharge
Fiber Cable Length (km) 14-42 (Single mode fiber 9/125 µm)
Fiber Type Single mode fiber (9/125 µm)
Maximum Temperature (°C) 60
Mean Time Between Failure (MTBF) 856 Years
Minimum Temperature (°C) 0
No. of Fiber Ports 1
Relative Humidity 5-95 %
Resistance to Vibrations 1 mm, 2 Hz-13.2 Hz, 90 min. 0.7 g, 13.2 Hz-100 Hz, 90 min. 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min. 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
Software Diagnostics Optical input and output power, transceiver temperature
Transition Type 2 kV power line, 1 kV data line
Brand HIRSCHMANN
Degree of Protection IP20
Dimensions (mm) 13.4W x 8.5H x 56.5D
Mounting Type SFP Slot
No. of Ports 1 x 1000 Mbit/s with LC connector
Operational Temperature Range (°C) 0 - 60
Power Consumption (W) 1
Series M-SFP
Storage Temperature Range (°C) -40 - 85
Surge Voltage (kV) Power Line: 2 kV (Line/Earth), 1 kV (Line/Line), 1 kV Data Line
Weight (g) 60
Weight (kg) 0.06
