Product Code: 88001246310

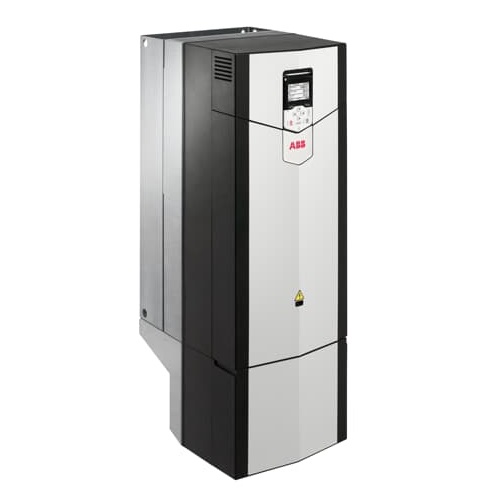

The variable speed drive is designed for 3-phase power supply with a voltage range of 380 - 480VAC and a power output of 132kW. In normal use, it has an output current of 246A and power of 132kW, while in heavy-duty use, the output current is 206A and power is 110kW. It features six digital inputs and five digital outputs, as well as two analog inputs and two analog outputs. The communication protocols supported include Modbus RTU. The drive can be wall-mounted and has an IP21 rating for protection against solid objects. For environmental compatibility, it includes an EMC filter suitable for second environment C3 conditions and is compatible with a grounded network (TN). It also comes with a brake chopper feature. Additionally, this variable speed drive supports synchronous reluctance motors (SynRM) and is ideal for a wide range of industrial applications.

No. of Analogue Inputs	2
No. of Analogue Outputs	2
No. of Digital Inputs	6
No. of Digital Outputs	2
No. of Relay Outputs	3
Output Current - Heavy Duty (A)	206
Output Current - Light Duty (A)	234
Output Current - Normal Duty (A)	246
Output Power - Heavy Duty (kW)	110
Output Power - Light Duty (kW)	132
Output Power - Normal Duty (kW)	132
Brand	ABB
Ambient Temperature Range (°C)	-15 to 40 (No frost allowed)
Communication	EIA-485 (Modbus)
Degree of Protection	IP21
Dimensions (mm)	963H x 300W x 300D
No. of Phases	3
Rated Supply Voltage AC (V)	380 - 415
Reference No.	ACS880-01-246A-3+D150+E200+N7502+P904+R700
Series	ACS880
Size of Frame	R8

Variable Speed Drives

ABB ACS880 132KW 246A IP21 INDUSTRIAL DRIVE W/ B'CP ACS880-01-246A-3+D150+E200+P90
