Product Code: 88001169500

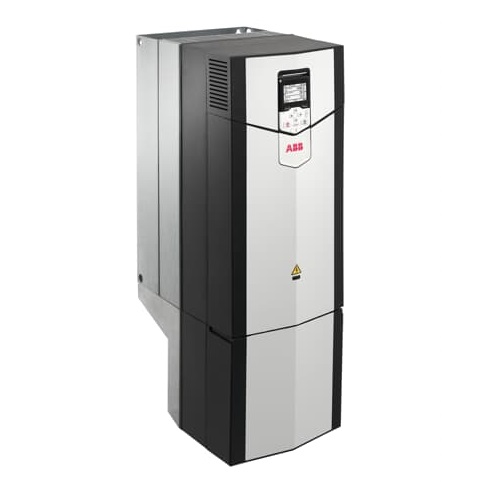

The ABB Variable Speed Drive is a powerful and efficient solution for controlling the speed of 3-phase motors. With a power rating of 90kW, it offers reliable performance in various industrial applications. The model number ACS880-01-169A-3+B056+D150+E20 indicates specific features and configurations of the drive. This drive is designed to optimize motor control and enhance energy efficiency, making it an ideal choice for engineers seeking precise speed control and improved productivity.

No. of Analogue Inputs	2
No. of Analogue Outputs	2
No. of Digital Inputs	6
No. of Digital Outputs	2
Output Current - Heavy Duty (A)	145
Output Current - Light Duty (A)	161
Output Current - Normal Duty (A)	169
Output Power - Heavy Duty (kW)	75
Output Power - Light Duty (kW)	90
Output Power - Normal Duty (kW)	90
Brand	ABB
Ambient Temperature Range (°C)	-15 to 40 (No frost allowed)
Communication	EIA-485 (Modbus)
Degree of Protection	IP55
No. of Phases	3
Rated Supply Voltage AC (V)	380 - 415
Series	ACS880
Size of Frame	R7

Variable Speed Drives

ABB ACS880 90KW 169A IP55 INDUSTRIAL DRIVE W/ B'CP ACS880-01-169A-3+B056+D150+E20

Product Code: 88001169500

Technical Specifications
