Diaphragm Material	Stainless steel 1.4435 (316L)
Electrical Connection	PUR-cable (black, Ø 7.4 mm) ) [Cable with integrated ventilation tube for atmospheric pressure reference]
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Lightning protection: Integrated, Electromagnetic compatibility: emission and immunity according to EN 61326.
Output Signal	4 … 20 mA / 2-wire
Permissible Temperatures	Medium: -20 … 70 °C Storage: -25 ... 70 °C
Pressure (mH2O)	40
Product Series	LMP 308
Response Time (ms)	≤ 10
Seals	FKM
Brand	BD SENSORS
Accuracy	Standard for pN ≥ 0.4 bar: 0.35 % FSO
Application	Preferred areas of use are Water/ Filtrated sewage: Ground water level measurement. Level measurement in wells and open waters. Rain spillway basin. Level measurement in container. Water treatment plants. Water recycling.
Cable Length (m)	40
Housing Material	Stainless steel 1.4404 (316L)
Series	LMP 308
Version	Standard

Level Sensors

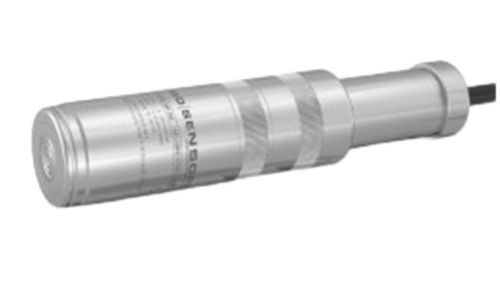

BD SENSORS LMP308 SEPARABLE SS 4.0BAR SS316L DIAPH. 4-20MA 2WIRE FKM 0.35%ACC. PUR 45MTR 4414001111123045000
