Brand	ABB
Efficiency	IE3
Frame Size	355
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	2
Mounting Method	Foot/flange-mounted, term. box top, IM B35, IM 2001
Rated Power (kW)	355
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Degree of Protection	IP66
Dimensions (mm)	1824 X 934 X 1284
Weight (kg)	1776

Motors

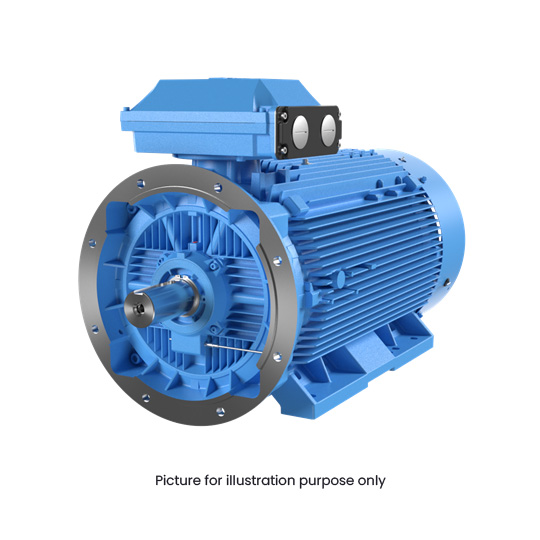

ABB IE3 CAST IRON MOTOR 2P 355kW 400VD FOOT/BIG FLANGE MOUNT B35 IP66 3GBA351230-HDM
